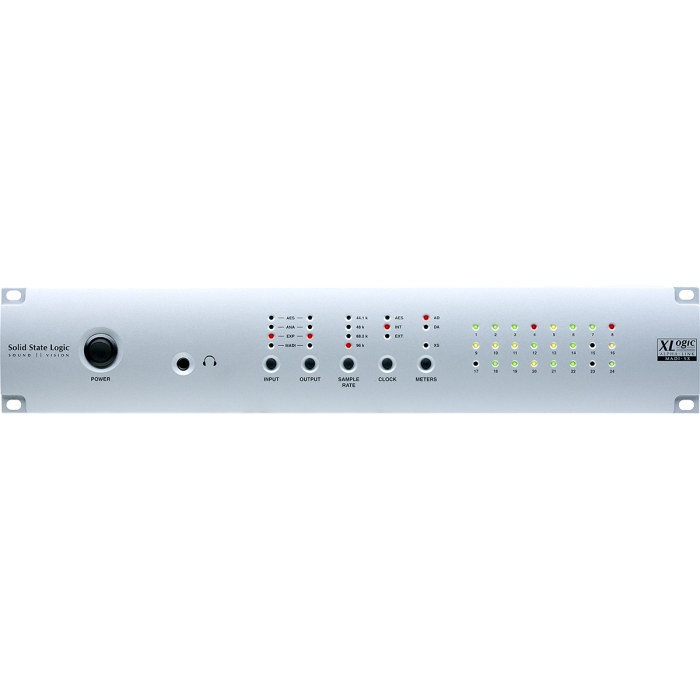

Solid State Logic Alpha Link MADI SX
Brand
SOLID STATE LOGIC
Professional MADI-AES/EBU AD/DA Converter with 24 Balanced Analog Inputs, Support for Up to 96kHz, Word Clock I/O, MIDI I/O, and Analog Metering
With the Alpha-Link Series, Solid State Logic breaks from their normal routine of producing some of the best sounding analog gear around and leaps into the world of high-end digital conversion. The Solid State Logic Xlogic Alpha-Link Audio I/O product range is a new collection of highly flexible and fully featured multi-channel Audio Converters for studio, live and broadcast applications at an incredible price/performance ratio. There are three Alpha-Link models featuring high quality 24-channel SSL enhanced AD/DA converter circuitry and offering a choice of digital audio format options.
Features
- 56 or 64 MADI digital inputs and outputs at up to 48kHz, 28 or 32 MADI digital inputs and outputs at up to 96kHz.
- 24 balanced analogue I/O with SSL enhanced AD DA at up to 96kHz on D-Sub connectors (for use with D-Sub to XLR looms).
- 64 channel Expansion Bus port.
- Word/SuperClock input and output.
- Video Sync input functionality for the Word Clock input: the Video Sync. signal can be converted to Word Clock internally and transmitted via the Word Clock output.
- MIDI input and output.
- Connects to Mixpander via Expansion Bus port.
- All input and output channels can be used simultaneously in any configuration.
Product Specs
| Channels | 64 |
|---|---|
| A to D | Yes |
| D to A | Yes |
| Sample Rate | 192kHz |
| Bit Depth | 24-bit |
| Analog Inputs | 3 x DB25 |
| Analog Outputs | 3 x DB25 |
| Digital Inputs | 1 x MADI, 3 x DB25 (AES/EBU) |
| Digital Outputs | 1 x MADI, 3 x DB25 (AES/EBU) |
| Clock Inputs | 1 x Word Clock |
| Clock Outputs | 1 x Word Clock |
| MIDI I/O | In/Out |
| Expansion Slots | One expansion port (for SSL Mixpander connection) |
| Rack Spaces | 2U |
| Height | 3.5" |
| Depth | 12.25" |
| Width | 19" |
| Weight | 13.25 lbs. |
| Manufacturer Part Number | 726901X1 |
| Manufacturer | SOLID STATE LOGIC |
|---|
