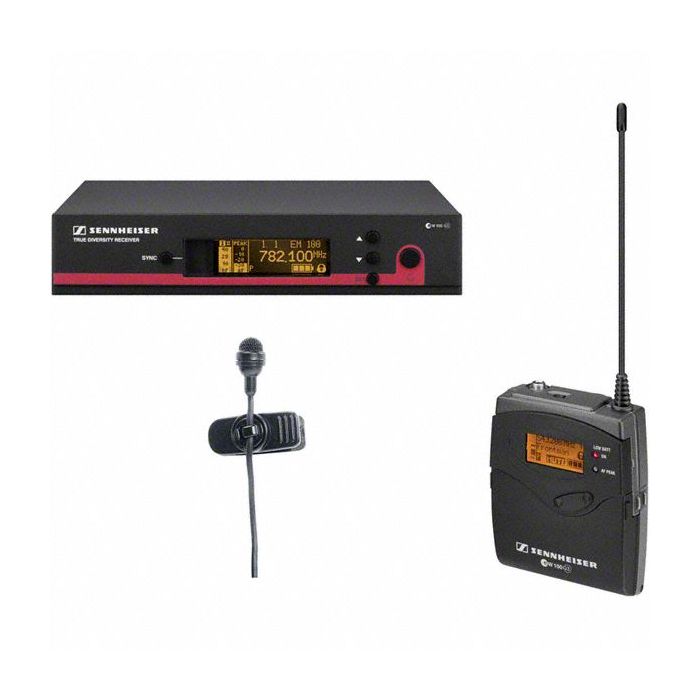

Sennheiser EW 122 G3-G-X Presentation Set

Discrete and easy on the voice: the compact cardioid clip-on microphone in this system rejects noises coming from the side which means less risk of feedback. Without having to speak very loudly, the presenter's voice is delivered in a rich and full manner. The bodypack transmitter features charging contacts for the optional rechargeable battery. Sync up the bodypack to the receiver wirelessly with the new wireless sync. Lastly, the true diversity receiver provides for reliable signal transmission, even in large rooms.

FEATURES

• Sturdy metal housing (transmitter and receiver

• 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception

• Enhanced frequency bank system with up to 12 compatible frequencies

• High-quality true diversity reception

• Pilot tone squelch for eliminating RF interference when transmitter is turned off

• Automatic frequency scan feature searches for available frequencies

• Enhanced AF frequency range

• Increased range for audio sensitivity

• Wireless synchronization of transmitters via infrared interface

• User-friendly menu operation with more control options

• Illuminated graphic display (transmitter and receiver)

• Auto-Lock function avoids accidental changing of settings

• HDX compander for crystal-clear sound

• Transmitter feature battery indicatation in 4 steps, also shown on receiver display

• Programmable Mute function

• Integrated Equalizer and Soundcheck mode

• Contacts for recharging BA 2015 accupack directly in the transmitter

• Wide range of accessories adapts the system to any requirement

Product Specs

• Frequency range

  606...648 MHz
  823...865 MHz / Power supply unit UK
  823...865 MHz / Power supply unit EU/Germany
  823...865 MHz / Power supply unit EU
  780...822 MHz / Power supply unit UK
  780...822 MHz / Power supply unit EU/Germany
  780...822 MHz / Power supply unit EU
  734...776 MHz / Power supply unit UK
  734...776 MHz / Power supply unit US
  734...776 MHz / Power supply unit EU
  626...668 MHz / Power supply unit UK
  626...668 MHz / Power supply unit US
  626...668 MHz / Power supply unit EU
  566...608 MHz / Power supply unit UK
  566...608 MHz / Power supply unit US
  566...608 MHz / Power supply unit EU
  516...558 MHz / Power supply unit UK
  516...558 MHz / Power supply unit US
  516...558 MHz / Power supply unit EU

• Frequency response (microphone)

  80 - 18000 Hz

• Compander

  HDX

• • Audio-XLR connector

    6,3 mm

  • Presets

    20

  • Microphone

    electret

  • Sound pressure level (SPL)

    120 dB(SPL) max.

  • THD, total harmonic distortion

    < 0,9 %

  • AF sensitivity

    40 mV/Pa

  • Signal-to-noise ratio

    > 110 dB(A)

  • RF frequency range

    516...865 MHz

  • RF output power

    30 mW

  • Transmission/receiving frequencies

    1680

  • Switching bandwidth

    42 MHz

  • Peak deviation

    +/- 48 kHz

  • In compliance with

    ETS 300422, ETS 300445, CE, FCC

  • Antenna connector

    2 BNC, 50 Ω

  • Input voltage range

    1,8 V line

  • Audio output level

    unbalanced: Jack : +12 dBu max

  • Audio output level

    balanced: XLR : +18 dBu max

  • Battery Specification

    2 x 1,5V AA

Transmitter

• Dimensions

  82 x 64 x 24 mm

• Weight

  ~ 160 g

• Operating time

  typ. 8 h

Receivers

• Dimensions

  212 x 202 x 43 mm

• Weight

  900 g
