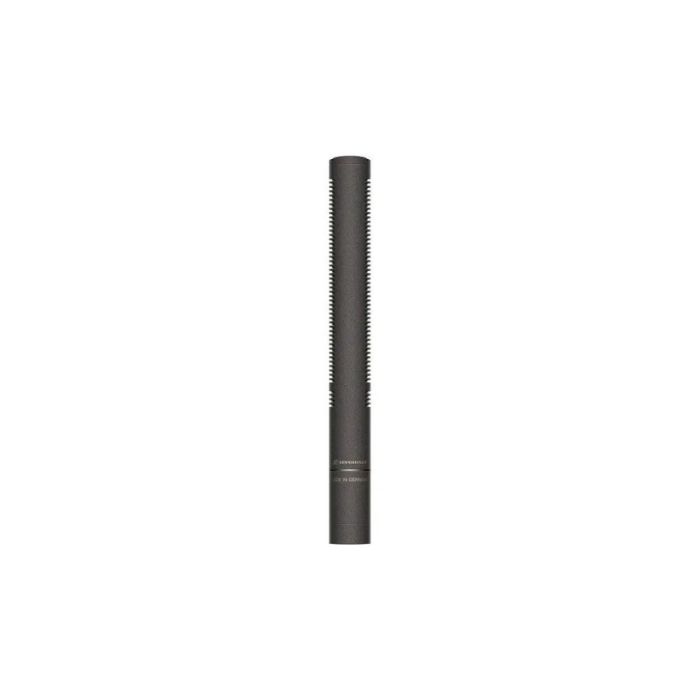

Sennheiser MKH 8060 Short Shotgun Microphone

Whether it's a feature film, a documentary, an outdoor shoot or a studio production, the MKH 8060 will provide high quality sound to match your great pictures. Handily compact it shows its strengths as a professional shotgun microphone: The MKH 8060 delivers an absolute natural sound and outstanding off-axis linearity, attenuating sound coming from the side without coloration. Like all mics of the 8000-family it can be easily combined with the MZD 8000 digital module, turning it into a
full-fledged digital microphone.

FEATURES

• Super-cardioid/lobar pick-up pattern

• Very natural sound

• Undistorted off-axis sound

• Exceptionally low inherent self-noise

• Extremely low distortion

• Transformerless and fully floating balanced output

• High output signal

• Rugged metal housing

• Non-reflective Nextel® coating

• Extremely weather-proof due to RF circuit

• Ideal for camera mounting due to compact design

• Becomes a digital mic when combined with the MZD 8000 digital module

• Timbrally identical with the other 8000-series microphones for optimum aural compatibility

Product Specs

• Frequency response

  50 - 25000 Hz

• Audio output

  XLR-3M balanced, transformerless, floating

• Sensitivity in free field, no load (1kHz)

  -24 dBV/Pa (63mV/Pa)

• • Nominal impedance

    25 Ohm

  • Min. terminating impedance

    2000 Ohm

  • Phantom powering

    48 V +/- 4 V

  • Equivalent noise level

    11 dB

  • Equivalent noise level weighted as per CCIR 468-3

    23 dB

  • Maximum sound pressure level (passiv)

    129 dB SPL

  • Current consumption

    3,3 mA
