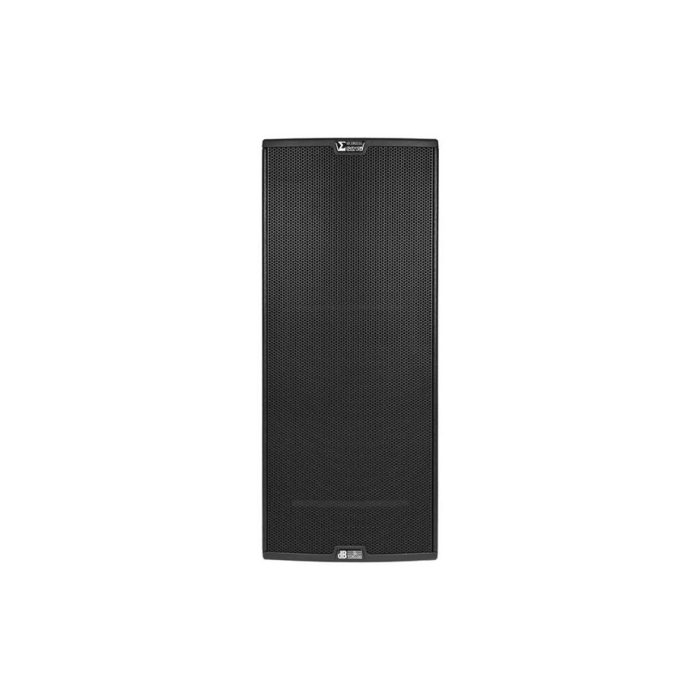

DB Technologies SIGMA S215 Dual 15" 1400 W Quasi 3-Way Active Speaker
Brand
D B TECHNOLOGIES
The SIGMA series is a fully integrated range of products for professional use, setting a new standard in the field of live amplification
Quasi 3-Way Active Speaker 2 x 15“/1.4“, 1400 W
Many venues demand high SPL and low-ranging response.
However, a fullrange enclosure is often the only viable option for some of these applications.
Loaded with two 15“ woofers designed to handle considerable loads, the S215is the solution of choice for such scenarios.
Product Specs
Speaker Type
Quasi 3-Way Active Speaker
Acoustical data
Frequency Response [-10dB]
42 - 20.000 Hz
Max SPL
139 dB
HF
1.4 "
Type HF
Titanium Compression driver
Voice Coil HF
2.8"
Directivity
60 x 40 °
Horn
CD Horn
LF
2x15" (with phase plug)
Voice Coil LF
3"
Amplifier
Amp Technology
Digipro® G2
Amp Class
Class D
Power PRG
1400 W
Peak Power
2800 W
Processor
Controller
DSP 24bit/48kHz
System Presets
Flat, Boost
Limiter
Dual Active
Peak, RMS, Thermal
Peak, RMS, Thermal
Crossover Frequency MF-HF
1100 Hz
Slope MF-HF
24 dB/Octave
Mechanics
Housing
Multiplex with H.E.T coating, reinforced
Width
509 mm (20.36 in)
Height
1215 mm (48.6 in)
Depth
533 mm (21.32 in)
Weight
50 kg (110.23 lbs)
| Manufacturer | D B TECHNOLOGIES |
|---|
