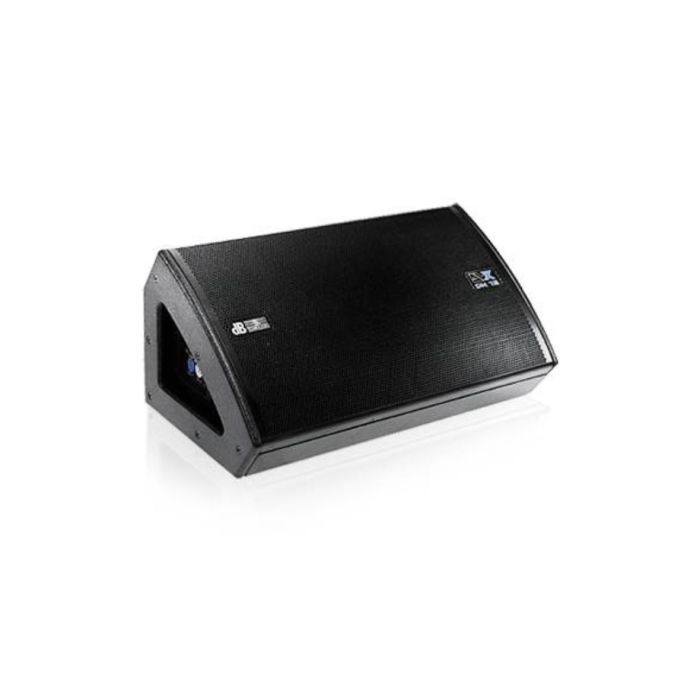

DB Technologies DVX DM12 Two-Way Active Stage Monitor
Brand
D B TECHNOLOGIES
The DVX DM12 is an active bi-amped stage monitor. Powerful, assertive, and engineered for professional applications, it is the perfect choice for midsized to large stages.
Featuring a discrete, unobtrusive design, the ultra low-profi le enclosure sports a high-performance 12“ neodymium woofer paired with a 1.4“ neodymium compression driver and rotatable aluminum CD horn precision matched for on-stage monitoring.
Unlike conventional multifunctional speakers, the DVX DM 12 is a prograde performer developed specifically for use as a floor monitor. Optimized to resist feedback even at extremely high levels, it delivers the true-to-nature response and dynamic balance that today’s artists demand.
The integrated digipro digital power amps deliver the requisite output. The switched-mode power supplies with PFC ensure touring rigs get all the juice they need to perform at their peak even when a venue’s mains power is weak and voltage is low.
The onboard controller encompasses an active equalizer,
active x-over including phase and time alignment, limiters, and switchable system presets that adapt the monitor’s performance to suit the given application.
Made of rugged multiplex and coated with tough black lacquer, the cabinet sets up at two different angles.
It is also equipped with a pole mount, enabling the DVX DM12 to be set on a tripod or speaker pole
active x-over including phase and time alignment, limiters, and switchable system presets that adapt the monitor’s performance to suit the given application.
Made of rugged multiplex and coated with tough black lacquer, the cabinet sets up at two different angles.
It is also equipped with a pole mount, enabling the DVX DM12 to be set on a tripod or speaker pole
Product Specs
Speaker Type
2-Way Active Stage Monitor
Acoustical data
Frequency Response [-10dB]
55 - 20.000 Hz
Frequency Response [+/- 3dB]
68 - 19.000 Hz
Max SPL
131 dB
HF
1.4 "
Type HF
Neodymium Compression Driver
Voice Coil HF
Titanium 2.5 "
Directivity
40x90 °
Horn
CD Horn Aluminium
Rotatable Horn
YES
LF
12 "
Type LF
Neodymium
Voice Coil LF
3 "
Amplifier
Amp Technology
Digipro®
Amp Class
Class D
Power RMS
750 W
Peak Power
1500 W
Cooling
Convection
Processor
Controller
DSP 24 Bit/48 kHz
System Presets
Flat, Monitor
Limiter
RMS, Peak. Thermal, Multiband
Crossover Frequency MF-HF
1320 Hz
Slope MF-HF
24 dB/Octave
Mechanics
Housing
Multiplex plywood
Housing Design
Low Profile Multifunctional
Angles Up
35, 55 °
Rigging Points
6x M10 4x Quick-Relase Pins
Width
660 mm (14.8 in)
Height
305 mm (25 in)
Depth
378 mm (15.8 in)
Weight
17.5 kg (55.12 lbs)
| Manufacturer | D B TECHNOLOGIES |
|---|
