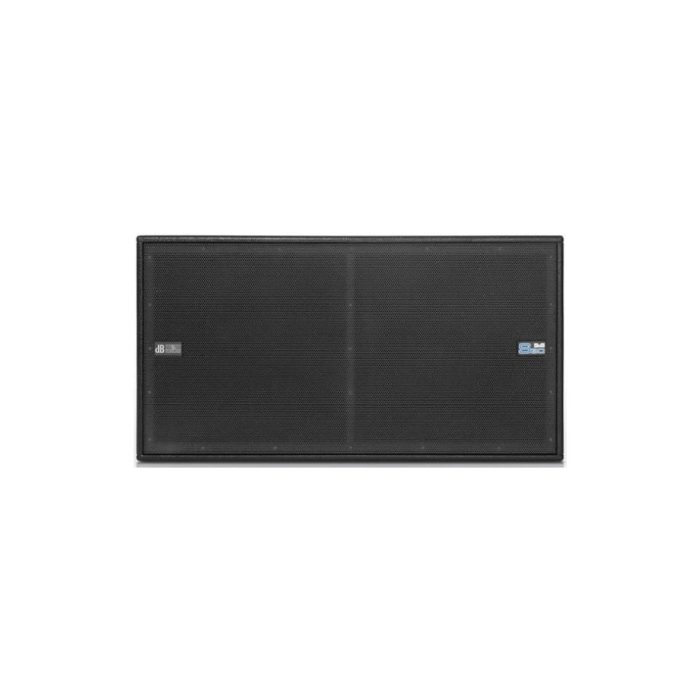

DB Technologies DVA S30N - Active 3000W Dual 18" Subwoofer
Brand
D B TECHNOLOGIES
Featuring a dual 18" subwoofer pairing in a bass reflex housing, the DVA S30 packs a muscular, ultra lowfrequency punch. This sub-bass powerhouse is the perfect addition to large PAs and an excellent complement to DVA T12 mid-/high-range units in stacked arrays.
DVA S30 N sub features a sophisticated hybrid design able to bring together the benefits of bass reflex and horn systems in a compact housing, engineered to render low frequencies with high sound pressure levels. The two baffle boards are arrayed in the form of a V and guide the central bass reflex channel‘s sound energy into the horn's port.
This funneling action is smooth and uniform, greatly increasing its range.
The high-quality multiplex housing is covered in robust black textured lacquer and equipped with eight grips.
Product Specs
Speaker Type
Active Bassreflex-Horn Subwoofer
Acoustical data
Frequency Response [+/- 3dB]
30 - 120 Hz
Max SPL
141 dB
Directivity
Omnidirectional, Cardiod Option with DSP setup
LF
2x18 "
Voice Coil LF
4 "
Amplifier
Amp Technology
Digipro® G2
Amp Class
Class D
Power Supply
3 kW SMPS
LF Amp
3000 W RMS
Cooling
Convection
Processor
Controller
DSP 56 bit
AD/DA Converter
DSP 24 bit/48 kHz
System Presets
X-Over,Delay
Phase
0, 180 °
Limiter
RMS, Peak, Thermal
Delay Option
0-4.5 ms internal
Crossover Frequency LF-MF
75-120Hz | steps of 5Hz
LF-Xover out slope
24 dB/Octave
Mechanics
Housing
Multiplex plywood
Housing Design
Rectangular
Handles
4x Per Side
Accessory
Dolly, Wheels 100mm,
Dust Cover, Rain Cover
Dust Cover, Rain Cover
Rigging Points
2xPick Points on top to fix
DRK10/20 rigging frames
DRK10/20 rigging frames
Width
1100 mm (44 in)
Height
580 mm (23.2 in)
Depth
720 mm (28.8 in)
Weight
83 kg (182.98 lbs)
| Manufacturer | D B TECHNOLOGIES |
|---|
