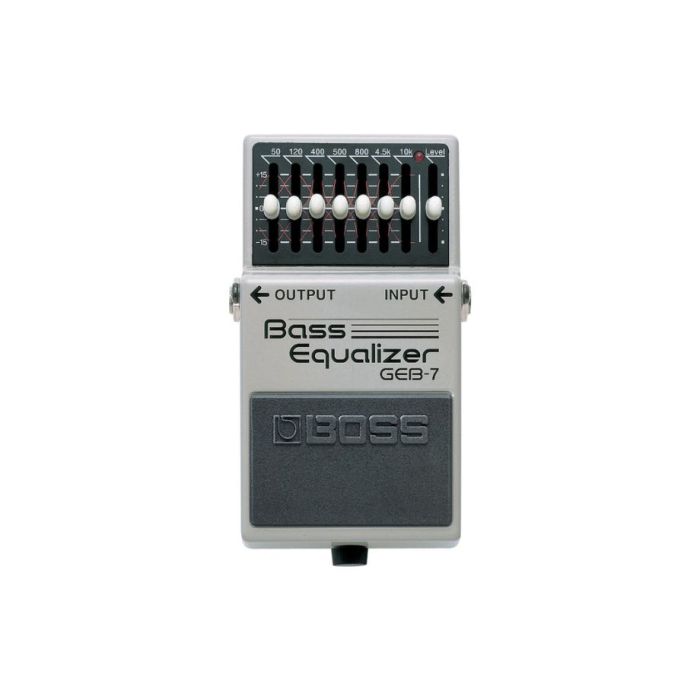

Boss GEB-7 Bass Equalizer Guitar Effects Pedal
Brand
BOSS
- 50Hz to 10kHz frequency range specifically designed for bass
- Full range response, even for five- and six-string basses
- Can be used as a "boost" or "cut" pedal using the level control knob
- Great for eletric-acoustic bass applications
- AC adaptor or 9V battery operation
- BOSS five-year warranty
PRECISE TONAL CONTROL
The GEB-7 is a seven-band equalizer created specifically for the frequency range of the electric bass. Since the frequency range extends down to 50Hz, the GEB-7 is also great for adjusting depth and bottom end of an upright bass with pickups.
| Nominal Input Level | -20 dBu |
| Input Impedance | 1 M ohms |
| Nominal Output Level | -20 dBu |
| Output Impedance | 1 k ohms |
| Residual Noise Level | -100 dBu (IHF-A, Typ.) |
| Variable Range | Equalizer Control: +/- 15 dB, Level Control: +/- 15 dB |
| Connectors | INPUT Jack, OUTPUT Jack, AC Adaptor Jack (DC 9 V) |
| Power Supply | DC 9 V: Dry Battery 9 V type (6F22/9 V), AC Adaptor |
| Current Draw | 16 mA (DC 9 V) |
| Accessories | Dry Battery 9 V type (6F22/9 V) |
| Option | AC Adaptor (PSA-Series) |
| SIZE AND WEIGHT ( INCL. BATTERY ) | |
| Width | 73 mm 2-7/8 inches |
| Depth | 129 mm 5-1/8 inches |
| Height | 59 mm 2-3/8 inches |
| Weight | 440 g 1 lbs. |
| Manufacturer | BOSS |
|---|
