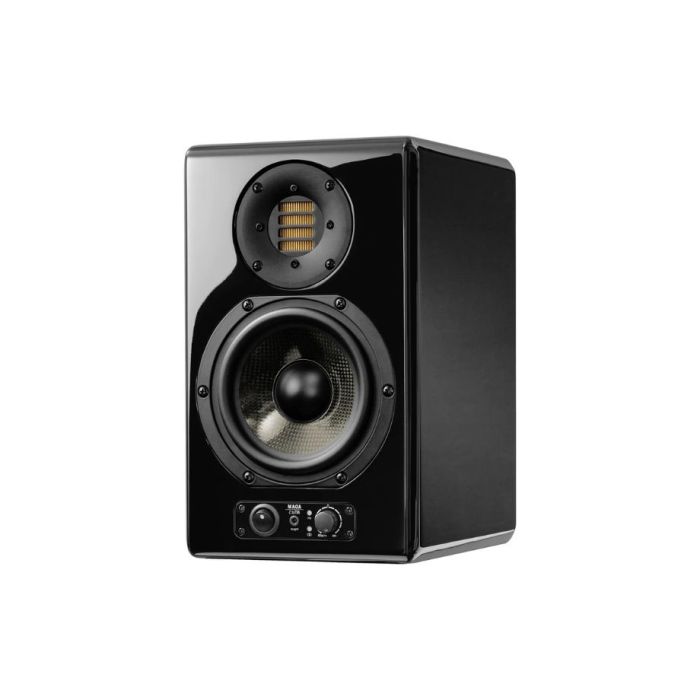

Adam Artist 5 Active Multimedia Speaker
Brand
ADAM
The similar dimensions and name could make one believe that the ARTist 5 is nothing more than a revamped version of the multiple awards winning A5. Comparing the sound of the A5 to the ARTist 5 however leaves no doubt that the ARTist 5 is much more than that.
Just like all other models of the ARTist-Series it features the proprietary X-ART tweeter. The very data of this technology shows that it is at the forefront of what tweeters can accomplish. Numerous listening tests have confirmed this.
A 5.5” midwoofer reproduces the frequencies below 2.5kHz. The diaphragm is made from Carbon fiber/Rohacell/Glass fiber. This material with minimum weight and maximum rigidity prevents break up resonances, resulting in an outstanding dynamic behaviour and impeccable sound characteristics.
Product Spec
| Mid-Woofer | |
| Number | 1 |
| Basket Ø | 5.5" (145 mm) |
| Voice coil Ø | 1.5" (32 mm) |
| Cone material | Carbon/Rohacell/Glass Fiber |
| Tweeter | |
| Number | 1 |
| Type | X-ART |
| Diaphragm area | 4 inch² (2420 mm²) |
| Equiv. Diaphragm Ø | 2" (56 mm) |
| Velocity transform ratio | 4:1 |
| Diaphragm weight | 0.17 g |
| Built-in Amplifiers | |
| Mid-Woofer | 1 |
| Type | A/B |
| Amp. power RMS / music | 50 W / 75 W |
| Tweeter | 1 |
| Type | A/B |
| Amp. power RMS / music | 50 W / 75 W |
| Control panel | |
| Input Sensitivity | -∞ to +14 dB |
| High Shelf EQ > 5 kHz | ±6 dB |
| Low Shelf EQ < 300 Hz | ±6 dB |
| Tweeter gain | ±4 dB |
| Input connectors | |
| Analog | XLR / RCA / 3.5 mm mini stereo jack |
| Digital | USB |
| General data | |
| Frequency response | 50 Hz - 50 kHz |
| THD 90dB/1m > 100 Hz | ≤0.6 % |
| Max SPL with sine wave acoustic 100Hz to 3kHz at 1m | ≥102 dB |
| Max SPL per pair at 1m | ≥110 dB |
| Crossover frequencies | 2500 Hz |
| Input impedance | 30 KOhm |
| Weight | 15.4 lb (7 kg) |
| Magnetically shielded | No |
| Height x Width x Depth | 11.5" (290 mm) x 7" (175 mm) x 8.5" (220 mm) |
| Finish | Black glossy, White glossy |
| Manufacturer | ADAM |
|---|
