Solid State Logic X-Rack with 8 Dynamics Modules
Brand
SOLID STATE LOGIC

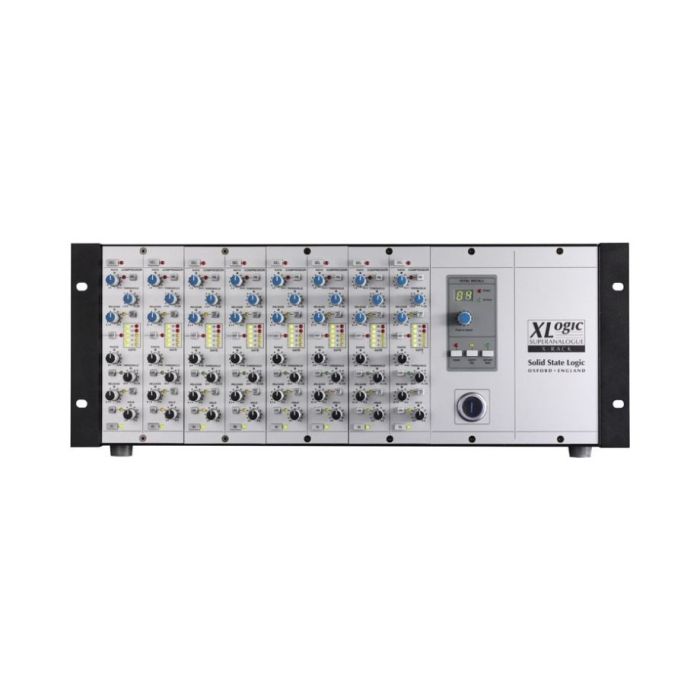

SSL XRack Loaded with 8 Dynamics Modules
SSL's innovative new XRack Dynamics comes pre-loaded with eight dynamics sections of a classic SSL XL 9000 K. The SSL XRack Dynamics incorporates eight channels of compression, limiting, expansion and gating with hard or soft knee operation and peak, or RMS sensing in a single 4U rackmountable unit. All of this circuitry is designed using SSL's acclaimed SuperAnalogue design techniques to deliver fantastic sound quality with very low noise and distortion.
Features
- Fully Balanced inputs and outputs
- Unlimited number of units can be connected together using dynamic linking
- RMS compressor, over-easy. switchable to peak sensing, hard knee via pull switch
- Selectable fast attack mode for fast transients
- Variable Ratio, Threshold and Release compressor
- adjustments, with RMS/Peak operation and fast/slow attack switches
- External key operation
- Independent Hold time and Release controls.
- Selectable Fast Attack. Switchable Gate ratios for 40:1
- Gate or 2:1 Expander Compressor and Gate LED metering
- SEL switch for selecting channel to be displayed on total recall plus null LEDs per control.
Product Specs
| Number of Channels | 16 (8 Stereo Channels) |
|---|---|
| Controls | Ratio, Threshold, Release (Compressor), Range, Threshold, Release, Hold (Gate) |
| Threshold | -20 dB to 10 dB |
| Ratio | 1:1 to Inf. |
| Frequency Response | 20Hz-20kHz |
| Side Chain Inserts | Yes |
| Inputs | 16 x 1/4" |
| Outputs | 16 x 1/4" |
| Sidechain I/O | 8 x 1/4 (In) |
| Rack Spaces | 4U |
| Height | 7" |
| Depth | 7.2" |
| Width | 19" |
| Weight | 11 lbs |
| Manufacturer | SOLID STATE LOGIC |
|---|
