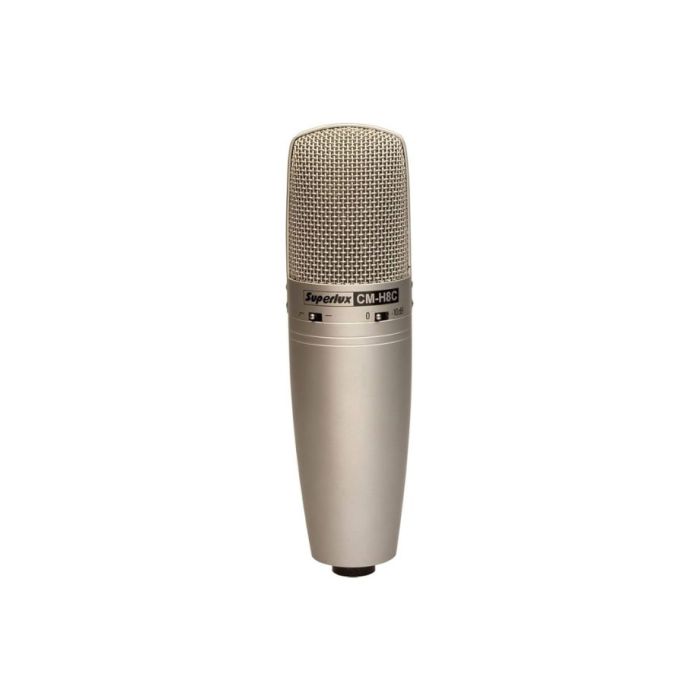

Superlux CMH8C Condenser Microphone
Brand
SUPERLUX
The Superlux CMH8C Condenser Microphone is an all purpose studio-grade large diaphragm condenser microphone with a 1-inch gold deposited diaphragm.
Specifcations
Type Ture condenser, ̮1” (̮25.4mm),
dual diaphragm
Polar Pattern Variable polar pattern from fgure 8,
cardioid and omni
Frequency Response 30 - 20,000Hz
Low Frequency Filter 100Hz
Pad -10dB
Sensitivity -35 / -30 / -35dBV/Pa (17 / 28 / 17mV)
Output Impedance 200Ω
Min. Load Impedance 1,000Ω
S/N Ratio 76 / 80 / 76dB
Equivalent Output Noise 18 / 14 / 18dB
Max. SPL 142 / 138 / 142dB
Dynamic Range 124dB
Power Requirements 48V DC, 4mA
Finish Champagne Silver
Connector XLR3M
Dimensions ̮54 x 200mm, ̮2.13” x 7.87”
Net Weight 565g (19.9oz)
Packaging A3 protective carrying case,
colorful outer packaging
| Manufacturer | SUPERLUX |
|---|
