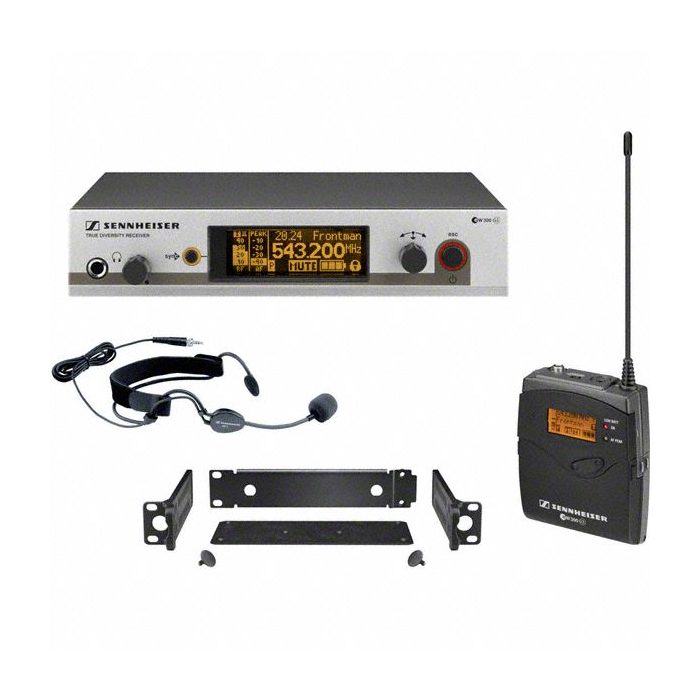

Sennheiser EW 352 G3-A-X Headset Wireless System

The lightweight and comfortable headset microphone allows for absolute freedom of movement for a more animated and impressive performance. High quality condenser technology provides clear, brilliant sound. All rack-mountable G3 300 series receivers are equipped with an Ethernet port. This port means you can monitor and remotely control the system from a PC with Sennheiser's "Wireless Systems Manager" software.

FEATURES

• Lightweight and comfortable condenser headset microphone

• Excellent speech intelligibility

• Highest reception quality thanks to true diversity technology

• Sturdy metal housing (transmitter and receiver)

• 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception

• Enhanced frequency bank system with up to 24 compatible frequencies

• Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems

• Pilot tone squelch for eliminating RF interference when transmitter is turned off

• Automatic frequency scan feature searches for available frequencies

• Enhanced AF frequency range

• Increased range for audio sensitivity

• Wireless synchronization of transmitter parameter from receiver

• User-friendly menu operation with more control options

• Illuminated graphic display, receiver also shows transmitter settings

• Auto-Lock function avoids accidental changing of settings

• HDX compander for crystal-clear sound

• Transmitter feature battery indicatation in 4 steps, also shown on receiver display

• Programmable Mute function

• Integrated Equalizer and Soundcheck mode

• Contacts for recharging BA 2015 accupack directly in the transmitter

• Wide range of accessories adapts the system to any requirement

Product Specs

• Frequency range

  606...648 MHz
  823...865 MHz / Power supply unit UK
  823...865 MHz / Power supply unit EU / Germany
  823...865 MHz / Power supply unit EU
  780...822 MHz / Power supply unit UK
  780...822 MHz / Power supply unit EU / Germany
  780...822 MHz / Power supply unit EU
  734...776 MHz / Power supply unit US
  734...776 MHz / Power supply unit EU
  626...668 MHz / Power supply unit US
  626...668 MHz / Power supply unit EU
  566...608 MHz / Power supply unit US
  566...608 MHz / Power supply unit EU
  516...558 MHz / Power supply unit US
  516...558 MHz / Power supply unit EU

• Frequency response (microphone)

  80...18000 Hz

• Compander

  HDX

• • Audio-XLR connector

    6,3 mm

  • Presets

    24

  • Microphone

    electret

  • Sound pressure level (SPL)

    150 dB(SPL) max.

  • THD, total harmonic distortion

    < 0,9 %

  • Pick-up pattern

    super-cardioid

  • AF sensitivity

    1,6 mV/Pa

  • Signal-to-noise ratio

    > 115 dB(A)

  • RF frequency range

    516...865 MHz

  • RF output power

    10/30 mW

  • Transmission/receiving frequencies

    1680

  • Switching bandwidth

    42 MHz

  • Peak deviation

    +/- 48 kHz

  • In compliance with

    ETS 300422, ETS 300445, CE, FCC

  • Antenna connector

    2 BNC, 50 Ω

  • Input voltage range

    1,8 V line

  • Audio output level

    unbalanced: Jack : +12 dBu max

  • Audio output level

    balanced: XLR : +18 dBu max

Transmitter

• Dimensions

  82 x 64 x 24 mm

• Weight

  ~ 160 g

• Operating time

  > 8 h

Receivers

• Dimensions

  212 x 202 x 43 mm

• Weight

  980 g
