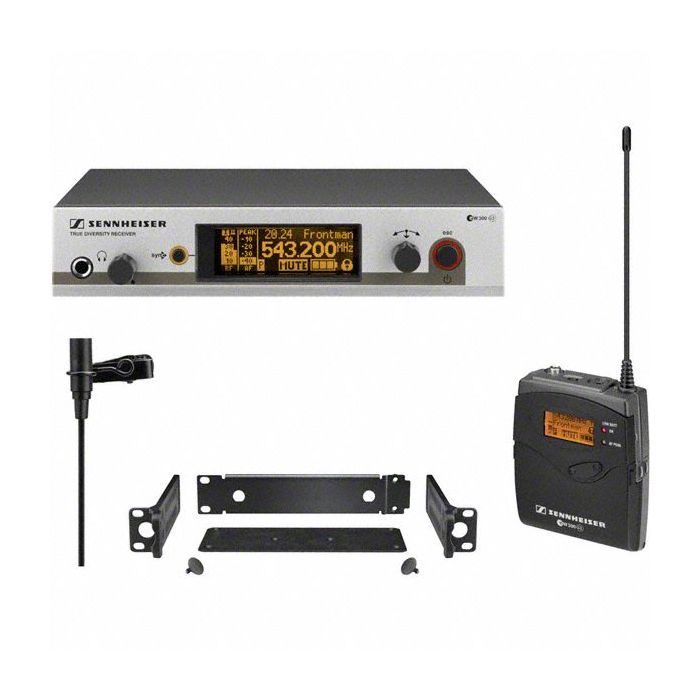

Sennheiser EW 312 G3-A-X Wireless Bodypack Microphone System

Communicating in harmony: when the settings on the receiver are changed, the components adjust to each other automatically with one push of the front panel sync button. The bodypack transmitter is equipped with charging contacts for the optional BA2015 rechargeable battery. The inconspicuous omni-directional clip-on microphone is optimized for best reproducing the sound of the human voice and provides supreme speech intelligibility.

FEATURES

• Unobstrusive clip-on microphone optimized for speech intelligibility

• Highest reception quality thanks to true diversity technology

• Scan function identifies available frequencies

• Sturdy metal housing (transmitter and receiver)

• 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception

• Enhanced frequency bank system with up to 24 compatible frequencies

• Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems

• Pilot tone squelch for eliminating RF interference when transmitter is turned off

• Enhanced AF frequency range

• Increased range for audio sensitivity

• Wireless synchronization of transmitter parameter from receiver

• User-friendly menu operation with more control options

• Illuminated graphic display, receiver also shows transmitter settings

• Auto-Lock function avoids accidental changing of settings

• HDX compander for crystal-clear sound

• Transmitter feature battery indicatation in 4 steps, also shown on receiver display

• Programmable Mute function

• Integrated Equalizer and Soundcheck mode

• Contacts for recharging BA 2015 accupack directly in the transmitter

• Wide range of accessories adapts the system to any requirement

Product Specs

• Frequency range

  606...648 MHz
  925...937.5 MHz / Korea
  823...865 MHz / Power supply unit UK
  823...865 MHz / Power supply unit EU / Germany
  823...865 MHz / Power supply unit EU
  780...822 MHz / Power supply unit UK
  780...822 MHz / Power supply unit EU / Germany
  780...822 MHz / Power supply unit EU
  734...776 MHz / Power supply unit US
  734...776 MHz / Power supply unit EU
  626...668 MHz / Power supply unit US
  626...668 MHz / Power supply unit EU
  566...608 MHz / Power supply unit US
  566...608 MHz / Power supply unit EU
  516...558 MHz / Power supply unit US
  516...558 MHz / Power supply unit EU

• Frequency response (microphone)

  80 - 18000 Hz

• Compander

  HDX

• • Audio-XLR connector

    6,3 mm

  • Presets

    24

  • Microphone

    electret

  • Sound pressure level (SPL)

    130 dB(SPL) max.

  • THD, total harmonic distortion

    < 0,9 %

  • Pick-up pattern

    omni-directional

  • AF sensitivity

    20 mV/Pa

  • Signal-to-noise ratio

    > 115 dB(A)

  • RF frequency range

    516...865 MHz

  • RF output power

    10/30 mW

  • Transmission/receiving frequencies

    1680

  • Switching bandwidth

    42 MHz

  • Peak deviation

    +/- 48 kHz

  • In compliance with

    ETS 300422, ETS 300445, CE, FCC

  • Antenna connector

    2 BNC, 50 Ω

  • Input voltage range

    1,8 V, line

  • Audio output level

    unbalanced: Jack : +12 dBu max

  • Audio output level

    balanced: XLR : +18 dBu max

Transmitter

• Dimensions

  82 x 64 x 24 mm

• Weight

  ~ 160 g

• Operating time

  > 8 h

Receivers

• Dimensions

  212 x 202 x 43 mm

• Weight

  980 g
