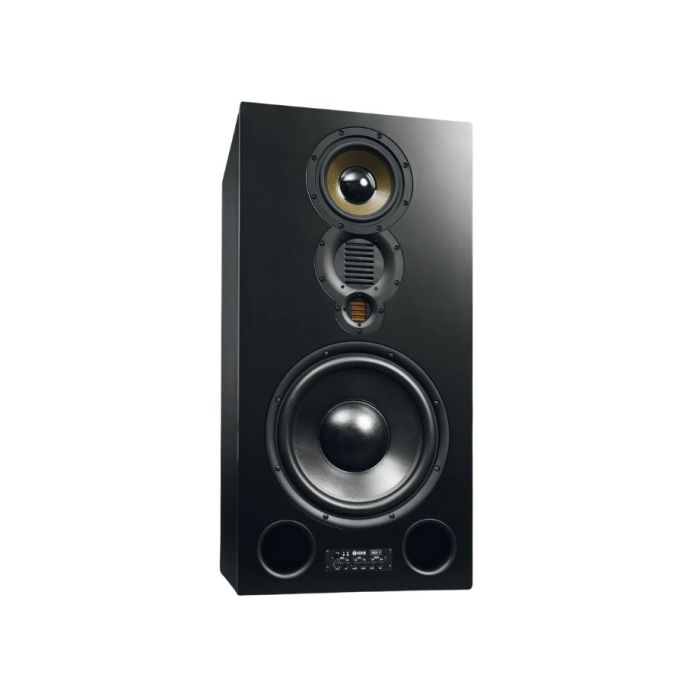

Adam S5X-V Midfield / Main Monitor, 4-way system
Brand
ADAM
The S5X-V is a 4-way main monitor with advanced dynamic capability that offers musical spatial representation at the highest level. It combines the X-ART midrange driver and tweeter with a 7.5" bass/midrange driver and one 12" woofer with HexaConemembranes. The 12" woofer practically acts as a built-in subwoofer working in the range from 25 Hz to 85 Hz. Equipped with a 3" voice coil and a large cone travel, it confi- dently masters its frequency range thanks to its generously sized driver.
The 7.5" bass/midrange driver operates in the range of 85 - 800 Hz in a separately enclosed chamber to achieve a maximum of clarity and transient fidelity. 250 Watt PWM amplifiers drive each the top three speakers, and a 500 Watt amplifier is available for the subwoofer.
The S5X-V is designed for medium and large control rooms where the focus of interest lies in precision of the acoustic reproduction.
Product Spec
| Subwoofer | |
| Number | 1 |
| Basket Ø | 12" (305 mm) |
| Voice coil Ø | 3" (75 mm) |
| Cone material | HexaCone |
| Mid-Woofer | |
| Number | 1 |
| Basket Ø | 7.5" (186 mm) |
| Voice coil Ø | 2" (50 mm) |
| Cone material | HexaCone |
| Midrange | |
| Number | 1 |
| Type | X-ART |
| Diaphragm area | 26 inch² (16800 mm²) |
| Equiv. Diaphragm Ø | 5.5" (146 mm) |
| Velocity transform ratio | 3.5:1 |
| Diaphragm weight | 0.7 g |
| Tweeter | |
| Number | 1 |
| Type | X-ART |
| Diaphragm area | 4 inch² (2420 mm²) |
| Equiv. Diaphragm Ø | 2" (56 mm) |
| Velocity transform ratio | 4:1 |
| Diaphragm weight | 0.17 g |
| Built-in Amplifiers | |
| Subwoofer | 1 |
| Type | PWM |
| Amp. power RMS / music | 500 W / 700 W |
| Mid-Woofer | 1 |
| Type | PWM |
| Amp. power RMS / music | 250 W / 350 W |
| Midrange | 1 |
| Type | PWM |
| Amp. power RMS / music | 250 W / 350 W |
| Tweeter | 1 |
| Type | PWM |
| Amp. power RMS / music | 250 W / 350 W |
| Control panel | |
| Input Sensitivity (coarse) | -20 to +8 dB (4 dB steps) |
| Input Sensitivity (fine) | -1.5 to +2 dB (0.5 dB steps) |
| EQ 80 Hz | 0 to +6 dB (1 dB steps) |
| High Shelf EQ > 6 kHz | ±4 dB (1 dB steps) |
| Low Shelf EQ < 150 Hz | ±4 dB (1 dB steps) |
| Tweeter gain | ±2 dB (0.5 dB steps) |
| Input connectors | |
| Analog | XLR |
| Digital (optional) | AES/EBU / SPDIF / word clock |
| General data | |
| Frequency response | 25 Hz - 50 kHz |
| THD 90dB/1m > 100 Hz | ≤0.5 % |
| Max SPL with sine wave acoustic 100Hz to 3kHz at 1m | ≥118 dB |
| Max SPL per pair at 1m | ≥128 dB |
| Crossover frequencies | 160 / 800 / 4000 Hz |
| Input impedance | 10 KOhm |
| Weight | 98.3 lb (44,6 kg) |
| Magnetically shielded | No |
| Height x Width x Depth | 32.5" (830 mm) x 16" (410 mm) x 19" (480 mm) |
| Manufacturer | ADAM |
|---|
