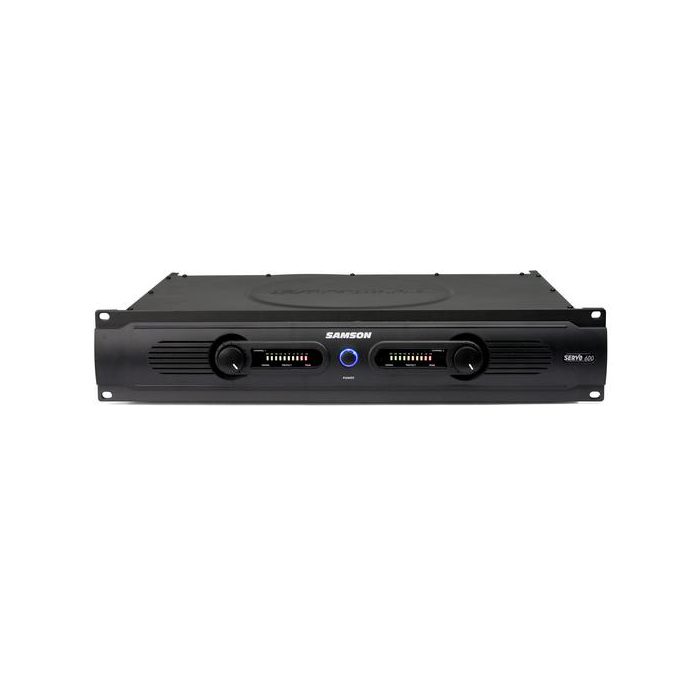

Samson Servo 600 - Power Amplifier

Be the first to review this product

26% Off

In stock

SKU

Servo 600

Special Price AED 1,226.00 Regular Price AED 1,635.00

Wishlist Compare

Details

The Servo 600 is ideal for larger applications where added power is needed to drive multiple speaker chains, or larger format speakers.The Servo amplifiers feature large 10-segment 3-color level LED meters and independent channel volume controls. The rear panels include 1/4-inch balanced and RCA input connectors, as well as 5-way binding post and 1/4-inch speaker outputs. 4-stage power protection circuitry that ensures optimal performance and protection of connected components.

Features

300 watts per side at 4 ohms
600 watts bridged mono at 8 ohms
1/4-inch and RCA input connectors
5-way binding post and 1/4-inch outputs
Dual Rack space design
10-segment, 3-color Level LED meters
4-stage power protection circuitry

Product Specs

Output Power	8 Ohm Stereo: 225W (Per Channel) 4 Ohm Stereo: 300W (Per Channel) 8 Ohm Bridged: 600W
Damping Factor	350
Input Sensitivity	1.24V (4 dBu) @ 8 Ohms
Input Impedance	15 kOhm, Unbalanced 30 kOhm, Balanced
Gain	34dB
Frequency Response	20Hz - 20kHz (0/-0.5dB, 8 Ohms, 1W) 5Hz - 60kHz (0/-3dB, 8 Ohms, 1W)
Signal-to-Noise Ratio	104dB (20Hz - 20kHz)
Total Harmonic Distortion (THD)	0.04%
Input Connections	2 x RCA, Unbalanced 2 x 1/4" (6.3mm) TRS, Balanced 1 x AC Power In
Output Connectors	2 x Pairs of 5-Way Binding Posts 2 x 1/4" (6.3mm) TRS Jacks
Controls Front Panel	1 x Power Switch 2 x Input Level Control Knobs
Controls (Rear)	1 x Bridge/Stereo Selector Switch
Indicators	2 x 10-Segment Output Level LED Meters LEDs for Peak, Protect, and Signal
Cooling	2 x Variable Speed Cooling Fans
Power	115/230/240VAC, 50/60Hz
Dimensions (WxHxD)	19 x 3.5 x 11.7" (483 x 89 x 297mm)
Weight	24 lbs (10.9 kg)
