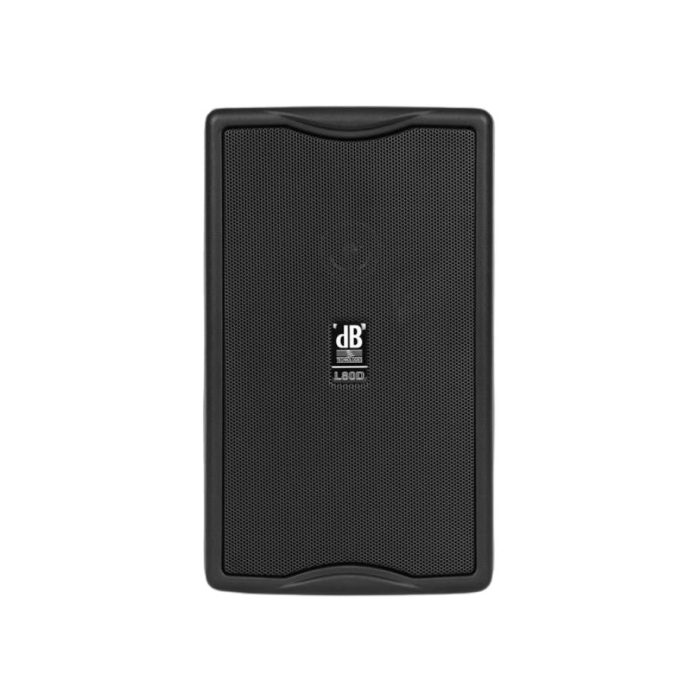

DB Technologies MINIBOX L80D 2-Way Active Speaker (80W)
MINIBOX L80D It is the ideal answer to all those musical and multimedia applications where a very compact, powerful and high-performance speaker is needed. Two 4” phase-corrected woofers, one equipped with a coaxial 1” dome tweeter, deliver astonishingly high sound pressure levels for their size and an amazingly transparent and articulate sonic image.
L80D: Mini Box, Great Talent
MINIBOX L80D collects the technological heritage of the renowned MINIBOX L160D
in a smaller and handy format.
Technically evolved
The 80W Class-D Digipro® power amp with proven reliability and efficiency packs huge performance and operating efficiency into a lightweight solution that takes a very small footprint. The MINIBOX L80D features a powerful 56bit DSP with 24bit/48kHz AD/DA conversion, which allows the user to choose directly from the box the most adequate equalization for the desired use, by optimizing the performance without the need of external processors.
Product Specs
Speaker Type
2-Way active speaker
Acoustical data
Frequency Response [-10dB]
90 Hz - 20.000 Hz
Max SPL
112 dB
HF
1"
Type HF
Dome Tweeter, coaxial
Directivity
85 x 75 °
LF
2 woofer 4" +dome tweeter (coaxial)
1 woofer 4"
1 woofer 4"
Amplifier
Amp Class
Class D
Amp Technology
Digipro®
Power PRG
80 W
Cooling
Convection
Processor
Controller
DSP 24bit/48kHz
System Presets
8
Limiter
Dual Active Peak, RMS, Thermal
Input
Signal Input
1x XLR Line In/Mic
1x 6.3mm phone jack
1x RCA cinch AUX with volume ctrl
1x 6.3mm phone jack
1x RCA cinch AUX with volume ctrl
Microphone Input
YES
Signal Output
1x 6.3mm phone jack
Power Socket
VDE
Voltage Range
110-120 - 220-240 V
Mechanics
Housing
Polyporpylene PP
Angles Up
Monitor use 60°
Rigging Points
2x M5 on side
2x M5 on bottom
2x M5 on bottom
Accessory
WB03, WB 11, SN120, SN130, SA25
Width
155 mm (6.10 in)
Height
265 mm (10.43 in)
Depth
180 mm (7.09 in)
Weight
3.75 kg (8.27 lbs)
