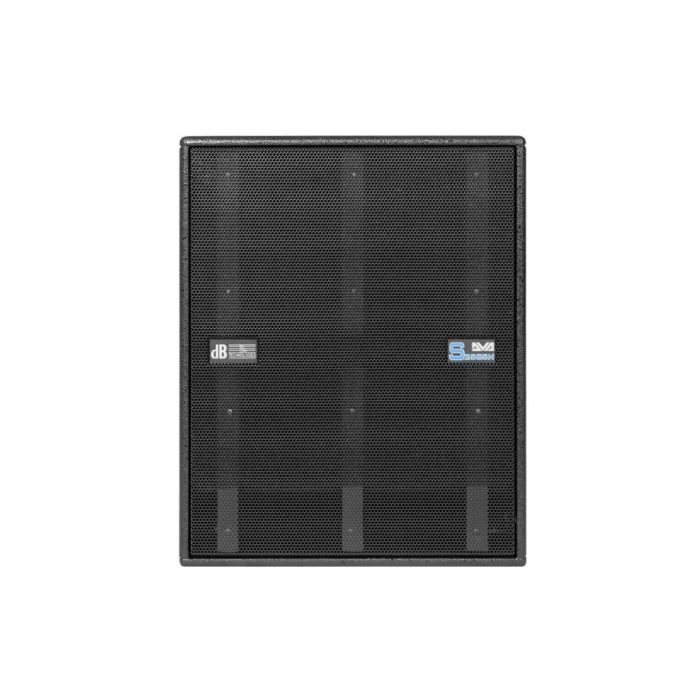

DB Technologies DVA S2585N Active Cardiod-Subwoofer
The DVA S2585N is a compact subsystem featuring a cardioid layout designed for utmost directivity.
DVA S2585N Subwoofer, 18"+ 15", Cardiod
The DVA S2585N is a compact subsystem featuring a cardioid layout designed for utmost directivity.
The system consists of two separate chambers, one loaded with a forward facing 18“ woofer and another with a rearward facing 15" woofer.
The integrated digipro®G2 digital power amps provide2500W total output power.
The high-quality DSP filters signals and controls the speakers to deliver a remarkably authentic audio image and faithful transient response.
The housing is ready to fly with the optional SRK10 Rigging Kit is all it takes to put up flown cardioid sub arrays.
Product Spec
Technical Data
Speaker Type: Active Cardiod-Subwoofer
Acoustical data
Frequency Response [+/- 3dB]: 35 - 120 Hz
Max SPL: 140 dB
Directivity: Cardiod
LF: 18+15 "
Voice Coil LF: 4 "
Amplifier
Amp Technology: Digipro® G2
Amp Class: Class D
Power Supply: 2.5 kW SMPS
LF Amp: 2500 W RMS
Cooling: Convection
Processor
Controller: DSP 56 bit
AD/DA Converter: 24bit/ 96 kHz
System Presets: X-Over,Delay
Phase: 0, 180 °
Limiter: RMS, Peak, Thermal
Delay Option: 0-4.5 ms internal
Crossover Frequency LF-MF: 75-120Hz | steps of 5Hz
LF-Xover out slope: 24 dB/Octave
Input
Mechanics
Housing: Multiplex birch plywood
Housing Design: Rectangular
Handles: 3x Per Side
Accessory: Dolly, Dust Cover, Rain Cover
Pole Mount: M20
Rigging Points: integrated for SRK10 fly kit 2xPick Points on top to fix DRK10/20 rigging frames
Width: 515 mm (20.6 in)
Height: 640 mm (25.6 in)
Depth: 1000 mm (40 in)
Weight: 65 kg (143.3 lbs)
