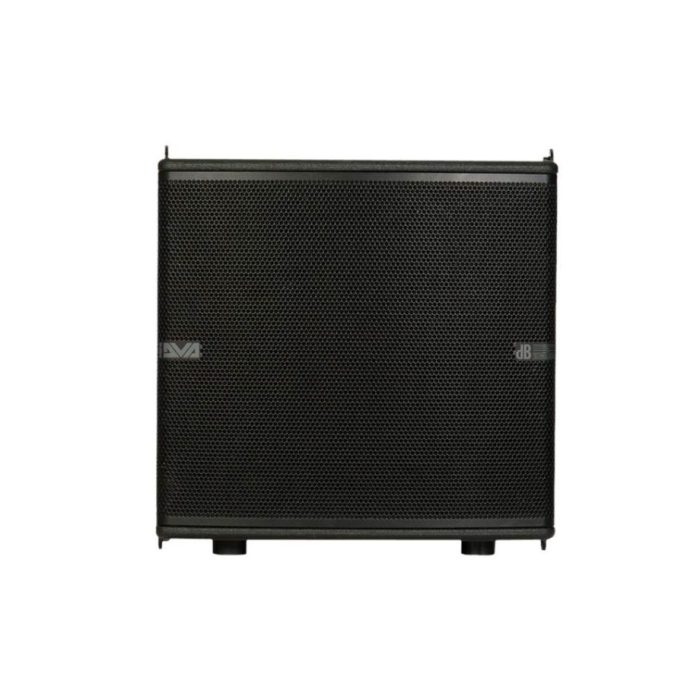

DB Technologies DVA MS12 Active Bass-Reflex Flyable Subwoofer
DVA MS12 is the flyable subwoofer which comes with the DVA Mini series.
DVA MS12 is the flyable subwoofer which comes with the DVA Mini series.
Especially designed to fit perfectly with an M2M and M2S array, the MS12 is equipped with a single 12" woofer in a bass reflex enclosure, acting as a perfect low-end extension module for DVA Mini systems.
Product Spec
Technical Data
Speaker Type: Active bass reflex flyable subwoofer
Acoustical data
Frequency Response [-6dB]: 45 - 140 Hz
Frequency Response [-10dB]: 40 - 165 Hz
Max SPL: 131 dB
LF: 12"
Voice Coil LF: 3"
Directivity: Omnidirectional
Amplifier
Amp Technology: Digipro® G3
Amp Class: Class D
Power Supply: 700W SMPS with PSU Auto-range (110V~ and 220V~)
LF Amp: 700 W RMS (1400 W Peak)
Cooling: Convection
Processor
Controller: DSP 56 bit
AD/DA Converter: 24 bit/48 kHz
Controls: X-Over frequency selection, Phase selection (0° or 180°), Outputs mode selection (Link/X-over), Mini-USB type “B” port (service data)
Limiter: Dual active, RMS/Peak, Thermal
Crossover Frequency LF-HF: 90 - 120 Hz
LF X-over out slope: 24 dB/Octave
Input
Mechanics
Housing: Multiplex birch plywood - Polyurea painting
Handles: 1x left side, 1x right side
Feet: 4x Dual Position Reversable Feet (flying/stacking mode)
Fittings: M20 screw for pole mount on top side, integrated hardware with fast lock mechanics
Width: 460 mm (18.1 in)
Height: 430 mm (16.9 in)
Depth: 385 mm (15.2 in)
Weight: 26.5 kg (58.4 lbs)
