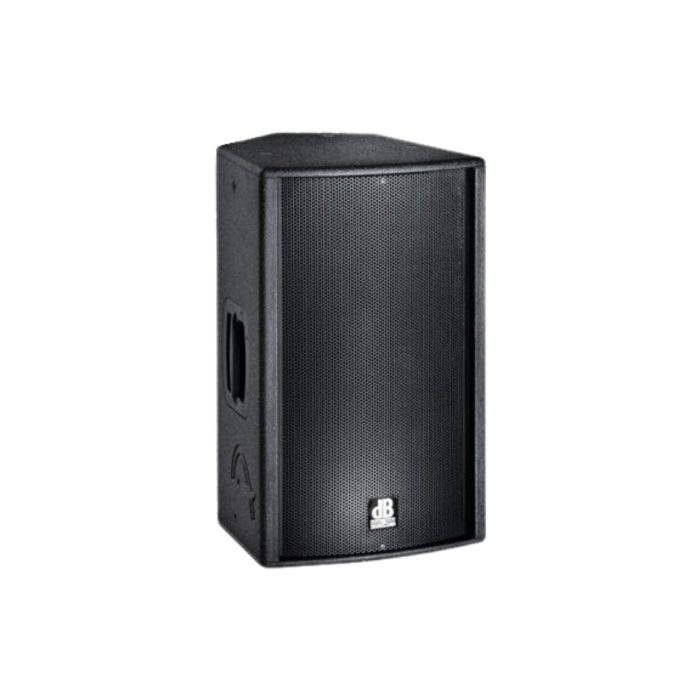

DB Technologies Arena 15 Pro Passive Speaker
The ARENA 15 PRO is a high-performance, two-way fullrange cabinet with a 15“ woofer and a 1.4“ HF driver.
Tuned to deliver truest response, it delivers powerful performance even when used as the main means of sound reinforcement without a connected subwoofer.
The ARENA 15 PRO is a high-performance, two-way fullrange cabinet with a 15“ woofer and a 1.4“ HF driver.
Tuned to deliver truest response, it delivers powerful performance even when used as the main means of sound reinforcement without a connected subwoofer.
Equally impressive are its great dynamic range,precise response, and high max sound pressure level of 133 dB.
It is indeed an excellent fullrange FOH enclosure and a powerful floor monitor.
Speaker Type
2-Way Passive Speaker
Acoustical data
Nominal Power Rating
500 W/RMS
Program Power Rating
1000 W
Impedance
8 Ohms
Sensitivity 1W@1m
100 dB
Frequency Response [+/- 3dB]
70 - 19.000 Hz
Max SPL
133 dB
HF
1.4 “
Voice Coil HF
2.5 “
Driver Protection
PTC
Directivity
90X40 °
Horn
CD Horn Aluminium
Rotatable Horn
YES
Crossover Frequency (passive)
1400 Hz
LF
15 “
Voice Coil LF
3“
Input
Signal Input
1x Speakon (Pin 1+=+) (Pin 1-=-)
Signal Output
1x Speakon (Pin 1+=+) (Pin 1-=-)
Mechanics
Housing
Multiplex plywood
Rigging Points
12 x M8
Width
458 mm (18.32 in)
Height
710 mm (28.4 in)
Depth
453 mm (18.12 in)
Weight
26.2 kg (57.76 lbs)
