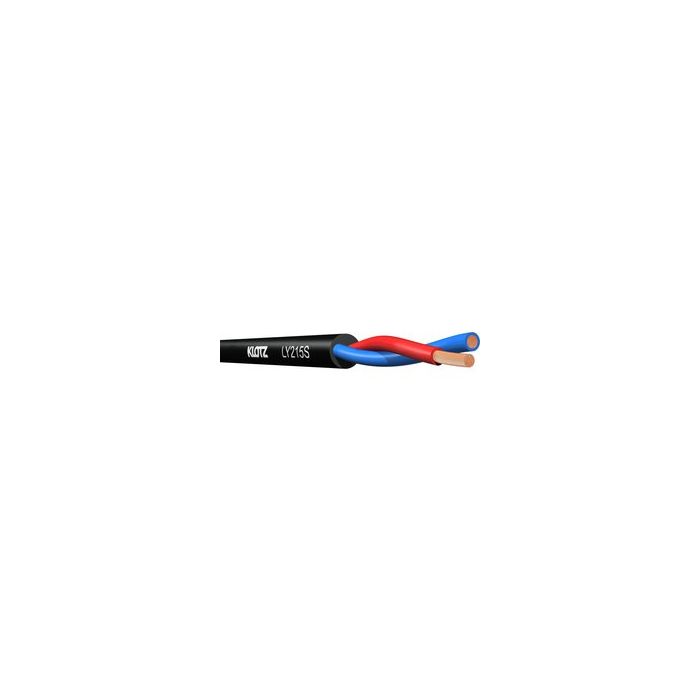

Klotz LY215S.A twinaxial speaker cables 100m - Black
Brand
KLOTZ
improved EMC by a very short length of twist
excellent comportement d'enroulement
A standard in connecting mobile speaker systems with long cable runs and large conductor areas or short bridge cables with lower power requirements: very short lengths of twist of the cores and the soft PVC jacket allows the use on drums, keeps the cable flexible and withstands heavy loads.Fixing to standard connectors or screw-type terminals is
Product Specs
construction
| conductor | stranded bare copper |
| insulation | blue & red |
| core arrangement | 2 cores twisted to a pair |
| outer jacket | PVC, matt |
mechanics
| min. bending radius | 5 x overall diameter |
| working temperature | -20 °C / +70 °C |
electric
| test voltage [50 Hz, 1 min] | 2000 V |
| max. operating voltage | 300 V |
| no. of cores | 2 |
| cond. construction | 30 x 0.25 mm |
| cond. cross section | 1.5 mm2 |
| conductor resistance | 12.5 Ω/km |
| capacitance | 150 pF/m |
| outer Ø | 7 mm |
| weight | 7,943 kg |
| copper weight | 30 g/m |
| colour | black |
| length | 100 m |
| Manufacturer | KLOTZ |
|---|
