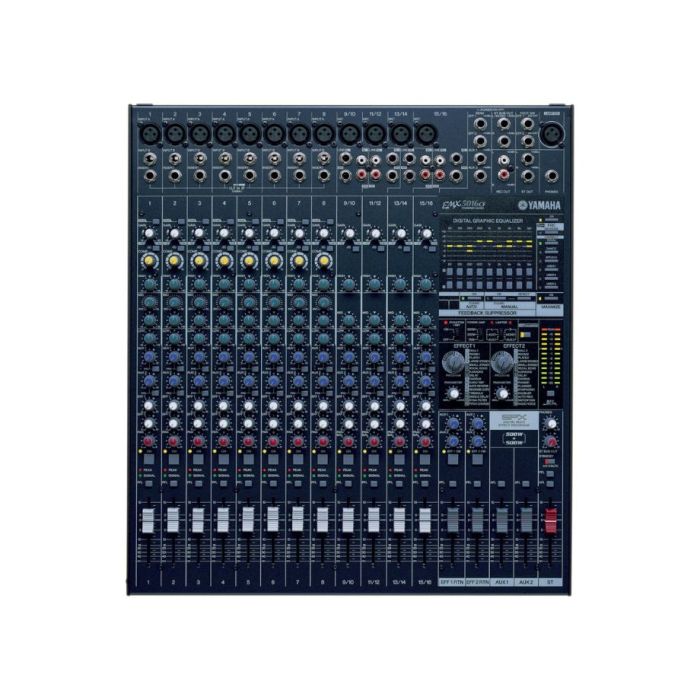

Yamaha EMX5016CF Powered Mixers
Brand
YAMAHA
Live sound gear can be intimidating, but Yamaha's new EMX5016CF Powered Mixer takes the confusion out of setting up a professional-sounding live music experience.
Live sound gear can be intimidating, but Yamaha's new EMX5016CF Powered Mixer takes the confusion out of setting up a professional-sounding live music experience. This 16-channel stereo powered mixer, which includes two 500-watt amplifiers, is ideal for bands, churches and small rental applications.The EMX5016CF delivers the convenience of an integrated powered mixer with input capacity, flexible features, and solid sound that critical live sound applications demand. It is remarkably compact and portable for a live sound system with this much capability, but offers performance and reliability that will satisfy the discerning professional user either on the road or in installed applications. And thanks to leading Yamaha digital technology, the EMX5016CF also includes a number of innovations that make it easier than ever to achieve top-class sound in just about any venue. An impressive power output of 500 watts per channel means it can handle fairly large audiences, indoors or out. The EMX5016CF goes considerably beyond the standard definition of "powered mixer," entering the realm of serious sound reinforcement.
Product Specs
| Total harmonic distortion | Less than 0.3% | |
|---|---|---|
| Frequency response | 0, +0, -3dB 20Hz-20kHz | |
| Hum & noise level | Equivalent input noise | -128dBu |
| Residual output noise | -68dBu (Speaker out); -95dBu (Line out) | |
| Crosstalk | -68dB | |
| Protection circuit | Load protection | Power switch on/off mute, DC-fault (power supply shutdown/manual reset), Clip limiter (≧THD 1%; compression) |
| Amplifier protection | Thermal (heatsink temp ≧90 degrees celsius; output mute/auto reset), Vl limiter (RL ≦2ohms) | |
| Power supply protection | Thermal (heatsink temp ≧100 degrees celcius; power supply shutdown/manual reset) | |
| Cooling | 2x Variable-speed fan | |
| Power requirements | Depend on area of purchase; AC100V, 120V or 220-240V; 50/60Hz | |
| Power consumption | 500W | |
| Dimensions | W | 444mm; 17-1/2in |
| H | 155mm; 6-1/8in | |
| D | 493mm; 19-7/16 (12U) | |
| Net weight | 11kg; 24.3lbs | |
| Manufacturer | YAMAHA |
|---|
