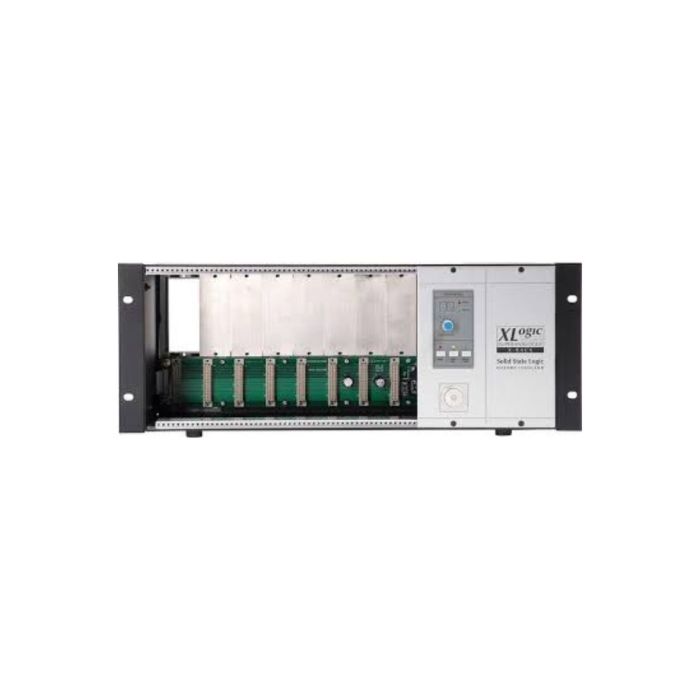

Solid State Logic XLogic X-Rack Empty With 6 Blanks

Using identical circuit design and manufacturing as the Solid State Logic Duality and AWS 900+ consoles, X-Rack is a modular rack system with Total Recall™ that delivers the classic SSL sound in a uniquely versatile form. Each X-Rack chassis holds up to eight modules in any configuration and there are 10 different modules on offer.

You could build a stunning SuperAnalogue™ front end for your recording system, with 2 flavors of mic pre (SuperAnalogue™ and VHD), EQ, transparent dynamics, and a powerful master section. Or create an SSL summing mixer with an ultra-pure analog mix bus, using two line input modules to achieve high channel counts or combine additional sources during mixdown to the legendary Stereo Bus Compressor.

You can even have EQ and Dynamics processing direct from the legendary E 40000 recording console; the world's most successful production console. X-Rack delivers the very highest quality analogue recording and summing path and is the perfect configurable solution for studio or live applications.

The X-Rack chassis is a 4U 19" rack housing with a premium-grade power supply, MIDI IN/OUT connections, and a Mix Bus Link port that enables 2 X-Racks to be cascaded. The chassis also houses the Total Recall™ system with onboard capacity to store 32 system snapshots (the snapshots can also be stored as MIDI SysEX).

Comes with six blanks which stylishly fill in the empty modular spaces of the XLogic X-Rack modular system.

Features

• 4U 19" rack housing with a premium-grade power supply
• MIDI IN/OUT connections
• Mix Bus Link port enables two X-Racks to be cascaded
• Stores 32 system snapshots (the snapshots can also be stored as MIDI SysEX)
• Accommodates up to eight mono dynamics processor modules
• Fully balanced inputs and outputs
• Compressor and Gate LED metering
• +4dBu/-10dBV input gain switch
• Includes 6 space blanks
• Current X-Rack module range:
• X-Rack 4000 E Dynamics Module (#180298)
• X-Rack 4000 E EQ Module (#180297)
• X-Rack Microphone Amp Module (#182049)
• X-Rack VHD Mic Preamp Module (#180239)
• X-Rack Channel EQ Module (#182052)
• X-Rack Dynamics Module (182051)
• X-Rack Stereo Bus Compressor Module (#180241)
• X-Rack 4-Channel Input Module (#182054)
• X-Rack 8-Channel Input Module (182053)

Product Specs

• Depth: 180mm/7.2 inches excluding front panel knob(s) and connectors; 255mm/10.2 inches including connectors, excluding front panel knob(s)
• Height: 178mm/7 inches (4 RU) excluding feet
• Width: 440mm/17.4 inches excluding rack ears; 483mm/19 inches including rack ears
• Weight: 2.8kg / 6.2 pounds without modules fitted; 3.5kg/7.7 pounds
• with blank panels fitted; 5.0kg/11 pounds with modules fitted
• Power: 50 Watts/60VA with 8 modules fitted
• Boxed size: 540mm x 300mm x 270mm/21.25" x 12" x 10.63"
• Boxed weight: 4.3kg/9.5 pounds without modules fitted; 5.0kg/11 pounds
• with blank panels fitted; 6.5kg/14.3 pounds with modules fitted
