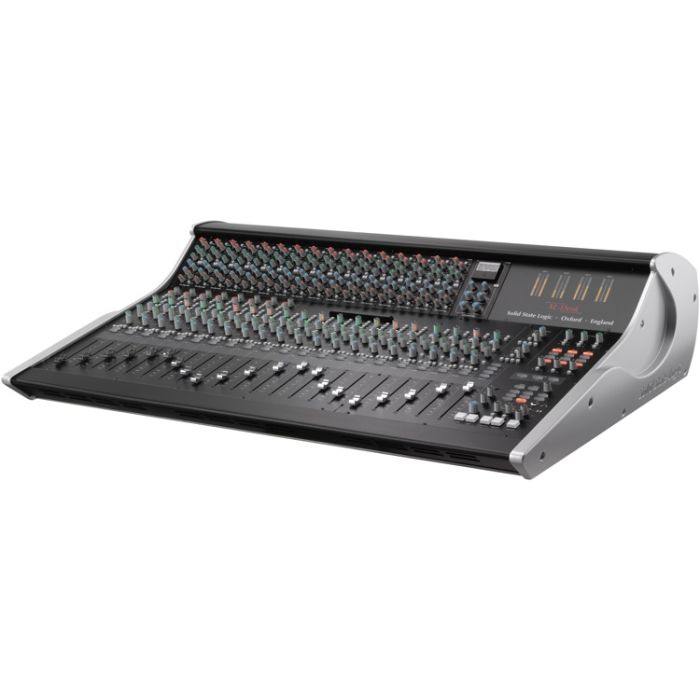

Solid State Logic XL-Desk with 16 x 611EQ E Series EQs
24-channel/44-input SuperAnalogue Mixer with 8 VHD Preamps, 4 Stereo Mix Buses, 2 Aux Buses, and 18 x 500 Series Rack Slots Preloaded with SSL 611EQ E Series Equalizer Modules and 1 x Master Bus Compressor Module
If you love your outboard gear, then the Solid State Logic XL-Desk may be the perfect large-format recording console for you. At Sweetwater, we've seen how the role of the large-format recording console has shifted over the past few years, with the abundance of top-level rack gear and the popularity of 500 Series preamps and processors. The XL-Desk is geared perfectly toward this new balance. It gives you the SuperAnalogue sound you expect, breathtaking VHD preamps, incredible routing flexibility, and the signature SSL monitoring and talkback options you need. At the same time, built-in 500 Series racks and a wealth of I/O make integrating your external hardware and DAW rig effortless.
Product Specs
| Type | Analog |
|---|---|
| Channels | 24 |
| Inputs - Mic Preamps | 1 x DB25 |
| Inputs - Line | 1 x DB25 |
| Inputs - Other | 2 x DB25 (DAW), 2 x DB25 (500), 1 x DB25 (Stereo), 1 x DB25 (Misc), 1 x DB25 (Mix) |
| Outputs - Main | 2 x XLR, 1 x DB25 |
| Outputs - Direct | 2 x DB25 |
| Outputs - Other | 2 x DB25 (500), 2 x DB25 (Misc), 1 x DB25 (Mix) |
| Headphones | 1 x 1/4" |
| Send/Return I/O | 1 x DB25 (Mix Send), 2 x DB25 (Insert Return), 2 x DB25 (Insert Send), 2 x DB25 (500 Return), 2 x DB25 (500 Send) |
| Phantom Power | 8 |
| Aux Sends | 1 x Stereo, 2 x Mono |
| Busses/Groups | 4 x Bus (Stereo) |
| Faders | 21 x 100mm |
| Channel Inserts | Yes |
| Effects | Yes (Compression) |
| Talkback | Yes |
| Computer Connectivity | 1 x USB |
| Height | 9.9" |
| Width | 40" |
| Depth | 32" |
| Weight | 89.5 lbs. |
