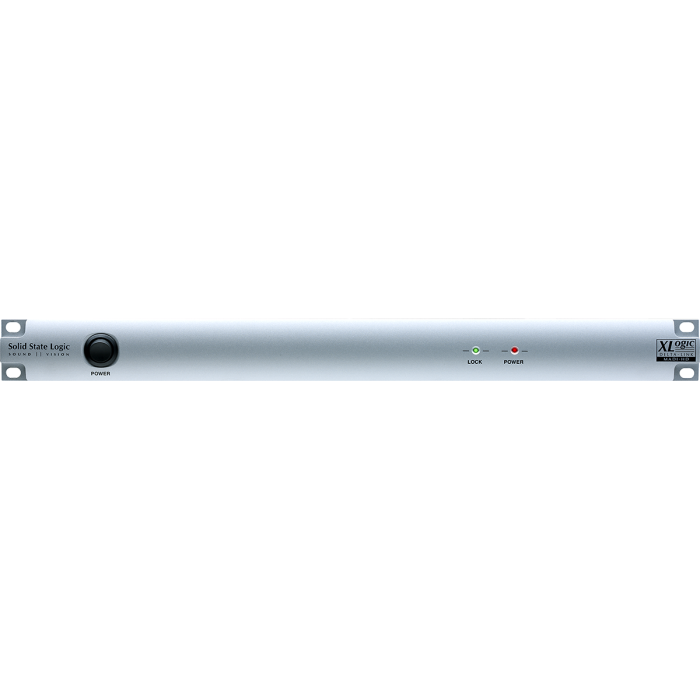

Solid State Logic Delta Link

The Delta-Link MADI HD is a professional 64 channel MADI to Pro Tools HD® interface for Studio, Live and Broadcast Applications. Delta-Link enables interconnection of audio converters, digital consoles and routers to Pro Tools HD systems via Fibre Optic MADI. By combining Delta-Link with SSL Alpha-Link audio converters, high channel count systems with simpler cable interconnection, reduced rack space requirements and superb audio quality can be configured at a very competitive price. Delta-Link MADI HD is compatible with Pro Tools HD Core and Accel Cards or HD Native and HDX Cards (HD Native and HDX cards require Digilink to Digilink Mini Adapter not supplied by SSL).

Key Features

• 2 Primary port interfaces (32 channel each) to a Pro Tools HD® card
• Compatible with Pro Tools HD Core and Accel Cards or HD Native and HDX Cards (HD Native and HDX cards require Digilink to Digilink Mini Adapter not supplied by SSL)
• 2 optical MADI ports
• Each MADI port offers 56 or 64 MADI digital inputs & outputs at up to 48kHz, 28 or 32 MADI digital inputs and outputs at up to 96kHz, 14 or 16 MADI digital inputs and outputs at up to 192kHz
• Word/SuperClock input
• MADI ports A and B can be used to provide two mirrored 64 channel I/O feeds
• The latency generated by the Delta-Link MADI HD itself is limited to 1 sample (MADI Out) and 1-2 samples (MADI In). Delta-Link allows different user-definable latency compensation per channel
