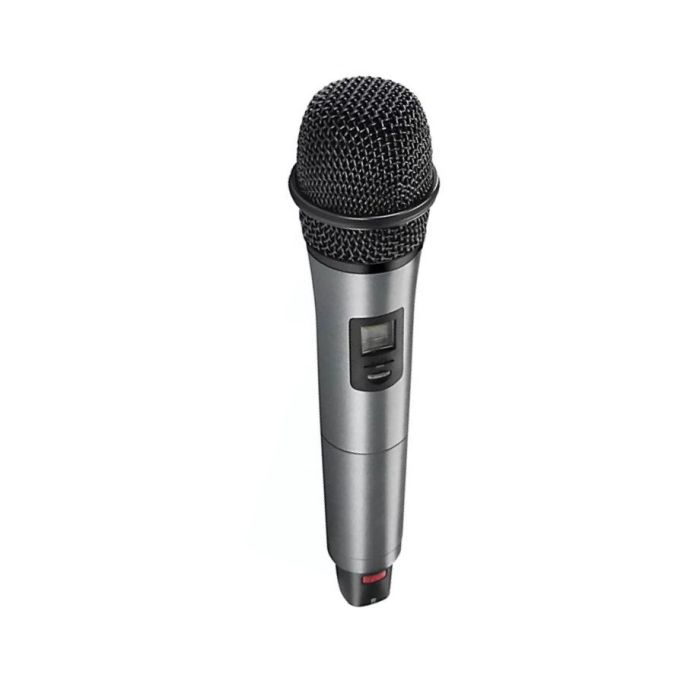

Sennheiser XSW 65-C Vocal Set

This XS WIRELESS Vocal Set is perfect for singers and speakers. The acoustic consists of a condenser capsule with super-cardioid pattern and offers high feedback rejection.

FEATURES

• Easy-to-use, all-in-one package for singers, speakers and presenters

• Condenser Capsule offers brillant sound

• High feedback rejection

• Mute button for full speech control

• Synchronization via RF remote channel

• Frequencies tunable in steps of 25 kHz

• 24 MHz bandwidth (13 MHz for the E band)

• 8 frequency banks with each max 12 presets

Product Specs

• RF frequency range

  821...832 MHz / 863...865 MHz
  548...572 MHz
  766...790 MHz
  614...638 MHz
  606...630 MHz
  548....865 MHz

• Presets

  12

• THD, total harmonic distortion

  < 1 %

• • Signal-to-noise ratio

    > 103 dB(A)

  • Transmission/receiving frequencies

    960 (520 in range E)

  • Switching bandwidth

    24 MHz (13 MHz in range E)

  • In compliance with

    ETS 300422 , ETS 300445 , CE , FCC

Receivers

• Dimensions

  200 x 127 x 42 mm

• Weight

  ~ 730 g

• Antenna connector

  2 BNC, 50 Ω

• • Audio output level (balanced)

    XLR : +14 dBu max

  • Audio output level (unbalanced)

    Jack : +8 dBu max

  • Diversity reception

    True Diversity

Hand-held transmitter

• Dimensions

  Ø 54 mm, L 250 mm

• Frequency response (microphone)

  80...16000 Hz

• Microphone

  Permanent polarized

• • Sound pressure level (SPL)

    144 dB

  • Transducer principle

    permanently polarised condenser microphone

  • Weight

    ~ 240 g

  • Pick-up pattern

    super-cardioid

  • AF sensitivity

    1,8 mV/Pa

  • RF output power

    typ. 10 mW

  • Operating time

    10 h
