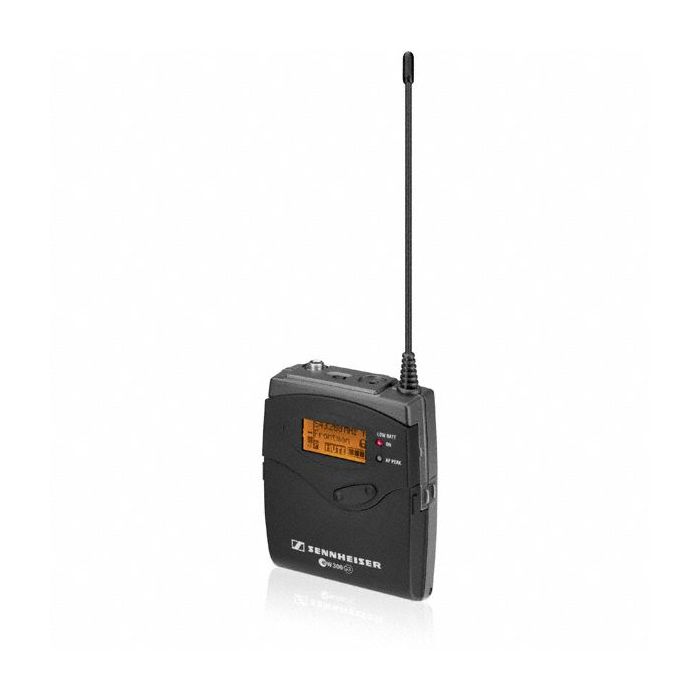

Sennheiser SK 300 G3-A-X Wireless Bodypack Transmitter

While it is ready for operation right out of the box, the SK 300 G3 easily receives settings from the receiver via its enhanced wireless sync function. This transmitter also sets itself apart from others due to its unparalleled mute options. If you want to quickly and easily interrupt the sound signal at some point: you can simply attach the optional external mute button to the additional 2.5 mm jack socket. This mute option is easily programmed to provide a variety of mute options.

FEATURES

• User-friendly menu operation with back-lit graphic display

• Easy synchronization of transmitters via infrared

• Auto-Lock function avoids accidental changing of settings

• Sturdy metal housing

• 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception

• Enhanced frequency bank system with up to 24 compatible frequencies

• Pilot tone squelch for eliminating RF interference when transmitter is turned off

• Enhanced AF frequency range

• Increased range for audio sensitivity

• Wireless synchronization of transmitters via infrared interface from receiver

• User-friendly menu operation with more control options

• Illuminated graphic display

• Auto-Lock function avoids accidental changing of settings

• HDX compander for crystal-clear sound

• Transmitter features battery indicatation in 4 steps, also shown on receiver display

• Programmable Mute function

• Contacts for recharging BA 2015 accupack directly in the transmitter

• Wide range of accessories adapts the system to any requirement

Product Specs

• Frequency range

  606...648 Mhz
  925...937.5 MHz / Korea
  823...865 MHz / Germany
  823...865 MHz
  780...822 MHz / Germany
  780...822 MHz
  734...776 MHz
  626...668 MHz
  566...608 MHz
  516...558 MHz

• Frequency response (microphone)

  80 - 18000 Hz

• Compander

  HDX

• • Audio-XLR connector

    3,5 mm jack

  • THD, total harmonic distortion

    < 0,9 %

  • Signal-to-noise ratio

    > 115 dB(A)

  • RF frequency range

    516...865 MHz

  • RF output power

    10/30 mW

  • Transmission/receiving frequencies

    1680 (max. 20 Presets)

  • Switching bandwidth

    42 MHz

  • Peak deviation

    +/- 48 kHz

  • In compliance with

    ETS 300422, ETS 300445, CE, FCC

  • Input voltage range

    1,8 V line

Transmitter

• Dimensions

  82 x 64 x 24 mm

• Weight

  ~ 160 g

• Operating time

  > 8 h
