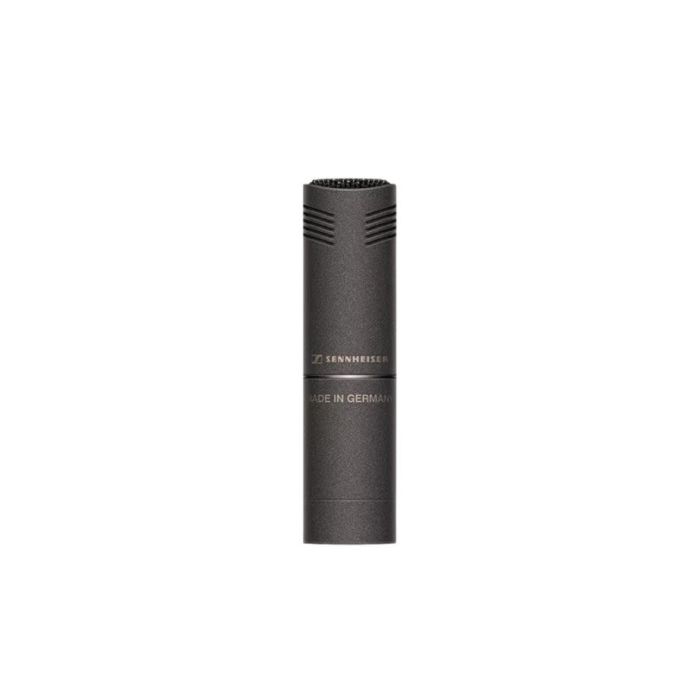

Sennheiser MKH 8050 Compact Supercardioid Condenser Microphone

Thanks to its super-cardioid pick-up pattern the MKH 8050 offers an even higher attenuation of off-axis sound, than its sister model MKH 8040. Thus, it is a perfect choice for recording soloists, and when absolute acoustical separation is demanded. Its balanced frequency response throughout the whole pick-up pattern ensured that large instruments like the grand piano but also orchestras sound musically flawless and free of distortion. The Nextel® coating of the MKH 8050 prevents reflections, giving you the freedom to position the microphone according to acoustic criteria alone.

FEATURES

• Super-cardioid pick-up pattern

• Modular Design

• Wide frequency response: 30 – 50,000 Hz

• Extremely low distortion

• Extremely low inherent self-noise

• Balanced frequency response within the pick-up pattern

• Very even directional diagram

• Non-reflective Nextel® coating

• Optimum separation of instruments

• Timbrally identical with the other 8000-series microphones for optimum aural compatibility

Product Specs

• Dimensions

  Ø 19 mm, L 41 mm (74 mm with XLR module)

• Frequency response

  30 - 50000 Hz

• Weight

  25 g (55 g with XLR module)

• • Audio output

    XLR-3M balanced, transformerless, floating

  • Pick-up pattern

    super-cardioid

  • Sensitivity in free field, no load (1kHz)

    20 mV/Pa (-34 dBV/Pa)

  • Nominal impedance

    25 Ω

  • Min. terminating impedance

    1000 Ω

  • Phantom powering

    48 V +/- 4 V

  • Equivalent noise level

    13 dB(A)

  • Equivalent noise level weighted as per CCIR 468-3

    22 dB

  • Maximum sound pressure level (passiv)

    142 dB SPL

  • Current consumption

    3,3 mA
