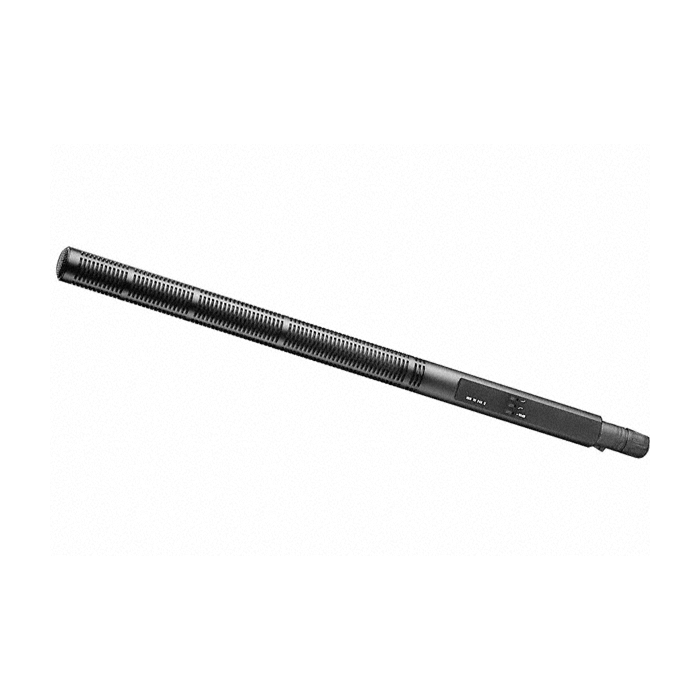

Sennheiser MKH 70-1 Long Gun Microphone

The MKH 70 is a lightweight long gun microphone. Its excellent directivity is particularly suited to applications undertaken in difficult conditions, such as high background noise and distance microphone positioning. Its frequency-independent directivity prevents sound colouration from off-axis sound sources.

FEATURES

• Exceptionally low inherent self-noise

• Transformerless and fully floating balanced output

• Infra-sonic cut-off filter

• Symmetrical transducer technology ensures extremely low distortion

• Switchable pre-attenuation, switchable roll-off filter and switchable treble emphasis

• Rugged and weather-proof

• Black, anodised light metal body

Product Specs

• Dimensions

  Ø 25 x 410 mm

• Frequency response (microphone)

  50 - 20000 Hz

• Sensitivity in free field, no load (1kHz)

  50 (15) mV/Pa

• • Nominal impedance

    150 Ω

  • Min. terminating impedance

    1000 Ω

  • Equivalent noise level

    5 (13) dB

  • Equivalent noise level weighted as per CCIR 468-3

    16 (24) dB

  • Maximum sound pressure level (passiv)

    124 (132) dB at 1 kHz

  • Current consumption

    2 mA

  • Battery Specification

    48 +- 4 V Phantom
