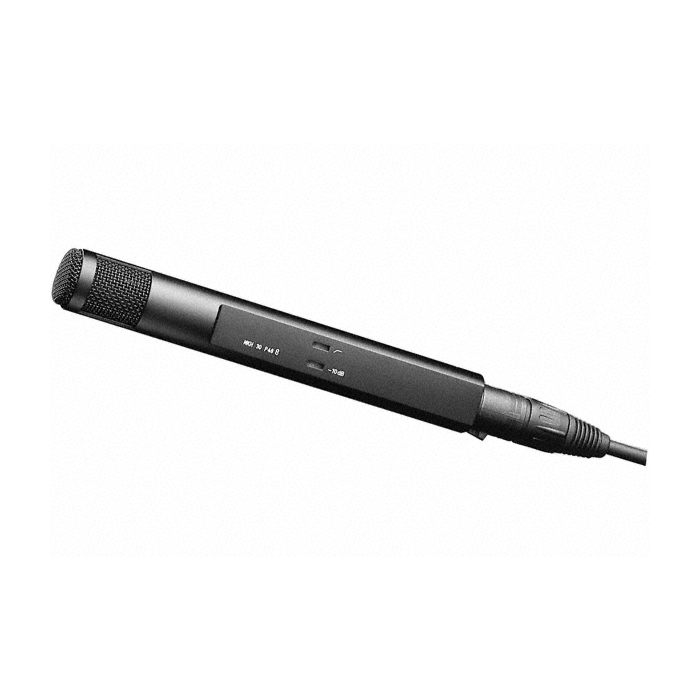

Sennheiser MKH 30-P48 Figure-8 Studio Microphone

The symmetrical transducer design of the MKH 30 produces an unusually wide and smooth frequency response. It is particularly suited to soloists and small instrumental groups and can also serve as an 'S' microphone in MS stereo applications. As a support microphone it is particularly useful in the effective suppression of sounds from adjacent sound sources.

FEATURES

• High rejection of lateral sounds

• Exceptionally low inherent self-noise

• Symmetrical transducer technology ensures extremely low distortion

• Transformerless and fully floating balanced output

• Switchable roll-off filter to compensate for proximity effects at a distance of approx. 0.5 m

• Switchable pre-attenuation

• Black, anodised light metal body

Product Specs

• Dimensions

  Ø 25 x 174 mm

• Frequency response (microphone)

  40 - 20000 Hz

• Sensitivity in free field, no load (1kHz)

  25 mV/Pa +- 1 dB

• • Nominal impedance

    150 Ω

  • Equivalent noise level

    13 (19) dB

  • Equivalent noise level weighted as per CCIR 468-3

    22 (28) dB

  • Maximum sound pressure level (passiv)

    134 db / 1 kHz

  • Current consumption

    2 mA

  • Battery Specification

    48 +- 4 V Phantom
