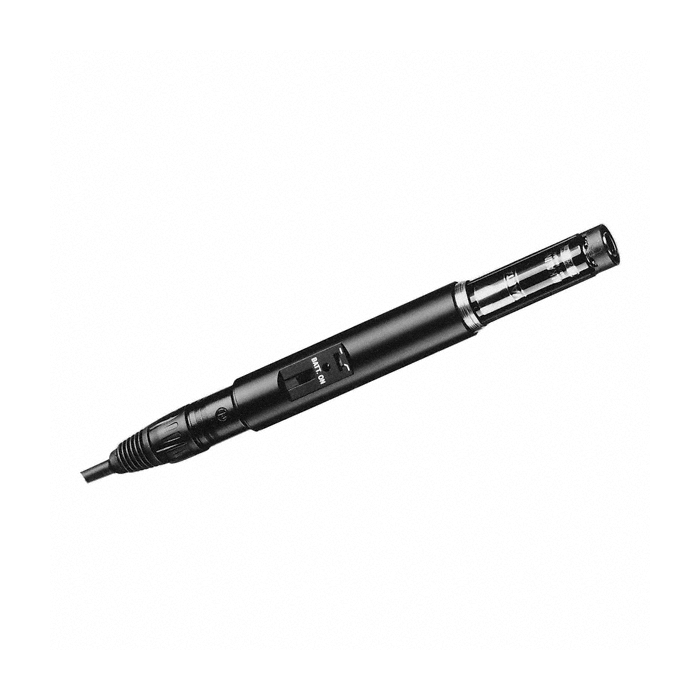

Sennheiser K 6 Microphone System Powering Module

The K6 powering module is the heart of this Sennheiser professional modular microphone system and can be powered either by its internal 'AA' size 1.5 V battery or by 12 - 48 V phantom power. The K6 can be combined with different condenser microphone heads to provide a wide variety of polar patterns. Matt black, anodised scratch-resistant finish.

FEATURES

• Switchable bass roll-off filter protects against rumble, handling, pop and wind noise

• On/off switch with battery test

• High output, low noise

• Transformerless balanced output on 3-pin XLR connector

Product Specs

• Frequency response (microphone)

  30 - 20000 Hz +- 1 dB

• Nominal impedance

  200 Ω

• Operating time

  max. 150 h

• • Gain

    0 dB

  • Current consumption

    2,2 mA

  • Output voltage

    2 V Phantom

  • Battery Specification

    12 - 48 V 1x Typ IEC LR 06 Phantom
