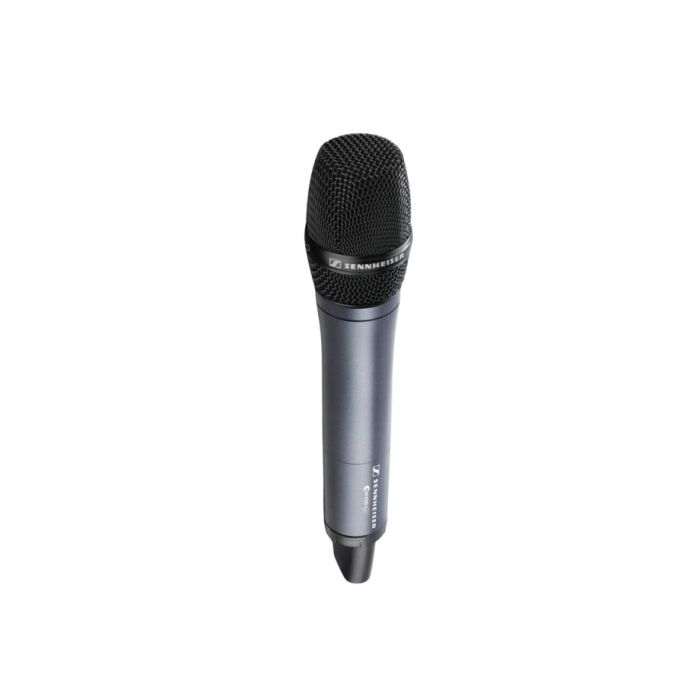

Sennheiser EW 500-945 G3-A-X Vocal System with Super-Cardioid Dynamic Microphone

Great technology throughout the microphone system make this system the ideal singing partner. The feedback-resistant, super-cardioid microphone capsule reproduces vocals prominently and with a smooth response. The powerful hand-held transmitter shows all important information on its large graphic display. Its optional rechargeable batteries can be recharged just by placing the handheld in the optional charging station.

FEATURES

• Sturdy metal housing (transmitter and receiver

• 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception

• Enhanced frequency bank system with up to 32 compatible frequencies

• Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems

• High-quality true diversity reception

• Pilot tone squelch for eliminating RF interference when transmitter is turned off

• Automatic frequency scan feature searches for available frequencies

• Enhanced AF frequency range

• Increased range for audio sensitivity

• Wireless synchronization of transmitter parameter from receiver

• User-friendly menu operation with more control options

• Illuminated graphic display, receiver also shows transmitter settings

• Auto-Lock function avoids accidental changing of settings

• HDX compander for crystal-clear sound

• Transmitter feature battery indicatation in 4 steps, also shown on receiver display

• Easy-exchangeable microphone modules from evolution series

• Integrated Equalizer and Soundcheck mode

• Contacts for recharging BA 2015 accupack directly in the transmitter

• Wide range of accessories adapts the system to any requirement

Product Specs

• Frequency range

  780...822 MHz / Power supply unit EU / Germany
  823...865 MHz / Power supply unit EU / Germany
  606...648 MHz
  780...822 MHz / Power supply unit UK
  823...865 MHz / Power supply unit UK
  516...558 MHz / Power supply unit US
  626...668 MHz / Power supply unit US
  734...776 MHz / Power supply unit US
  566...608 MHz / Power supply unit US
  925...937.5 MHz / Korea
  516...558 MHz / Power supply unit EU
  626...668 MHz / Power supply unit EU
  734...776 MHz / Power supply unit EU
  780...822 MHz / Power supply unit EU
  823...865 MHz / Power supply unit EU
  566...608 MHz / Power supply unit EU

• Dimensions

  Receiver: 212 x 202 x 43 mm

• Dimensions

  Transmitter: Ø 50 mm, L 265 mm

• • Frequency response (microphone)

    80 - 18000 Hz

  • Compander

    HDX

  • Audio-XLR connector

    6,3 mm

  • Presets

    32

  • Microphone

    dynamic

  • Sound pressure level (SPL)

    154 dB(SPL) max.

  • THD, total harmonic distortion

    < 0,9 %

  • Weight

    Receiver: 980 g

  • Weight

    Transmitter: 450 g

  • AF sensitivity

    1,6 mV/Pa

  • Signal-to-noise ratio

    > 115 dB(A)

  • RF frequency range

    516...865 MHz

  • RF output power

    10/30 mW

  • Transmission/receiving frequencies

    1680

  • Switching bandwidth

    42 MHz

  • Peak deviation

    +/- 48 kHz

  • In compliance with

    ETS 300422 , ETS 300445 , CE , FCC

  • Operating time

    Transmitter: > 8 h

  • Antenna connector

    2 BNC, 50 Ω

  • Audio output level (balanced)

    XLR : +18 dBu max

  • Audio output level (unbalanced)

    Jack: +10 dBu max
