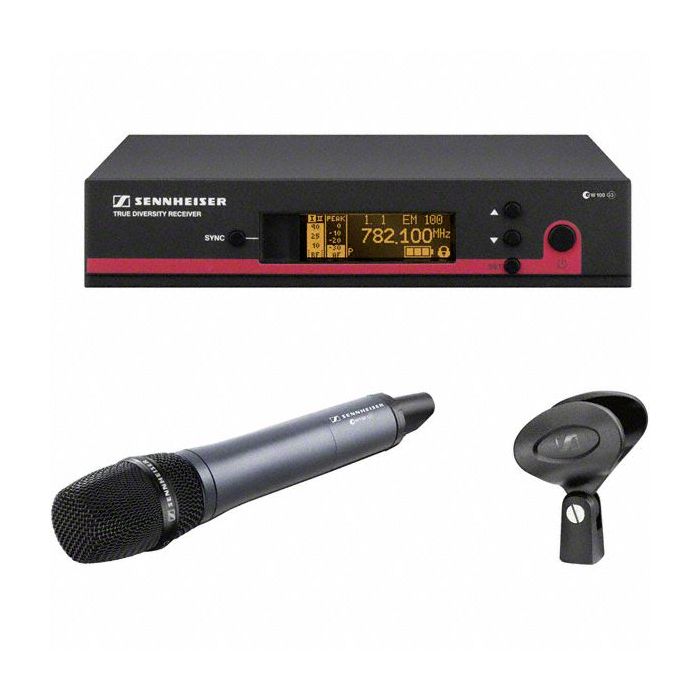

Sennheiser EW 145 G3-A-X Supercardioid Wireless System

Pure sound: the super-cardioid capsule captures more of what you want while rejecting off-axis noise. This makes the mic very resistant to feedback as well as a great choice for those working with loud stage volume levels. The included soundcheck mode on the receiver makes it possible to check the RF signal strength and audio levels continuously. The new G3 sync function allows you to wirelessly link the transmitter with the receiver with a simple push of a button. Lastly, the true diversity receiver has a built-in 5 band equalizer which completes this professional sound package.

FEATURES

• Sturdy metal housing (transmitter and receiver

• 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception

• Enhanced frequency bank system with up to 12 compatible frequencies

• High-quality true diversity reception

• Pilot tone squelch for eliminating RF interference when transmitter is turned off

• Automatic frequency scan feature searches for available frequencies

• Enhanced AF frequency range

• Increased range for audio sensitivity

• Wireless synchronization of transmitters via infrared interface

• User-friendly menu operation with more control options

• Illuminated graphic display (transmitter and receiver)

• Auto-Lock function avoids accidental changing of settings

• HDX compander for crystal-clear sound

• Transmitter feature battery indicatation in 4 steps, also shown on receiver display

• Handheld transmitter with easy-exchangeable microphone modules from evolution series

• Integrated Equalizer and Soundcheck mode

• Contacts for recharging BA 2015 accupack directly in the transmitter

• Wide range of accessories adapts the system to any requirement

Product Specs

• Frequency range

  606...648 MHz
  925...937.5 MHz / Korea
  823...865 MHz / Power supply unit UK
  823...865 MHz / Power supply unit EU / Germany
  823...865 MHz / Power supply unit EU
  780...822 MHz / Power supply unit UK
  780...822 MHz / Power supply unit EU / Germany
  780...822 MHz / Power supply unit EU
  734...776 MHz / Power supply unit US
  734...776 MHz / Power supply unit EU
  626...668 MHz / Power supply unit US
  626...668 MHz / Power supply unit EU
  566...608 MHz / Power supply unit US
  566...608 MHz / Power supply unit EU
  516...558 MHz / Power supply unit US
  516...558 MHz / Power supply unit EU

• Dimensions

  Receiver: 212 x 202 x 43 mm

• Dimensions

  Transmitter: Ø 50 x 265 mm

• • Frequency response (microphone)

    80 - 18000 Hz

  • Compander

    HDX

  • Audio-XLR connector

    6,3 mm

  • Presets

    12

  • Microphone

    dynamic

  • Sound pressure level (SPL)

    154 dB(SPL) max.

  • THD, total harmonic distortion

    < 0,9 %

  • Weight

    Receiver: 900 g

  • Weight

    Transmitter: 450 g

  • AF sensitivity

    1,6 mV/Pa

  • Signal-to-noise ratio

    > 110 dB(A)

  • RF frequency range

    516...865 MHz

  • RF output power

    30 mW

  • Transmission/receiving frequencies

    1680

  • Switching bandwidth

    42 MHz

  • Peak deviation

    +/- 48 kHz

  • In compliance with

    ETS 300422, ETS 300445, CE, FCC

  • Operating time

    Transmitter: typ. 8 h

  • Antenna connector

    2 BNC, 50 Ω

  • Audio output level (balanced)

    XLR : +18 dBu max

  • Audio output level (unbalanced)

    Jack : +10 dBu max
