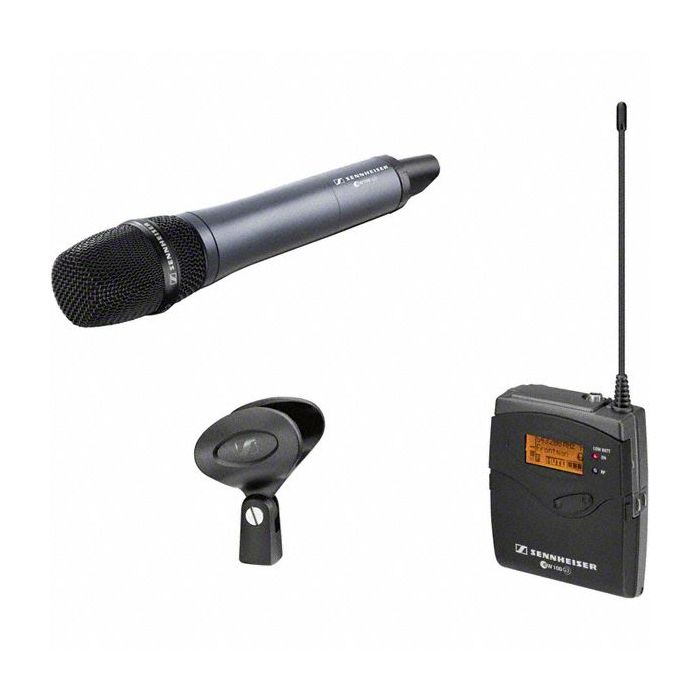

Sennheiser EW 135P G3-GB Camera Mount Wireless Microphone System

A handheld system designed for field operation: this system is the perfect choice for ENG professionals. The rugged hand-held cardioid wireless microphone provides professional sound quality for interviews and reporting, even under unfavorable conditions. At the camera end of the wireless signal path is the portable and reliable EK 100 G3 adaptive diversity receiver.

FEATURES

• Sturdy metal housing (transmitter and receiver)

• 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception

• Enhanced frequency bank system with up to 12 compatible frequencies

• Adaptive-diversity reception for high reception quality

• Pilot tone squelch for eliminating RF interference when transmitter is turned off

• Automatic frequency scan feature searches for available frequencies

• Enhanced AF frequency range

• Increased range for audio sensitivity

• Wireless synchronization of transmitters via infrared interface

• User-friendly menu operation with more control options

• Illuminated graphic display (transmitter and receiver)

• Auto-Lock function avoids accidental changing of settings

• HDX compander for crystal-clear sound

• Transmitter and receiver feature battery indicatation in 4 steps

• Easy-exchangeable microphone modules from evolution series

• Contacts for recharging BA 2015 accupack directly in the transmitter or receiver

• Wide range of accessories adapts the system to any requirement

Product Specs

• Frequency range

  516...558 MHz
  626...668 MHz
  823...865 MHz
  734...776 MHz
  566...608 MHz
  780...822 MHz / Germany
  823...865 MHz / Germany
  516...558 MHz
  626...668 MHz
  734...776 MHz
  780...822 MHz
  566...608 MHz
  606...648 MHz

• Dimensions

  Receiver: 82 x 64 x 24 mm

• Dimensions

  Transmitter: Ø 50 x 265 mm

• • Frequency response (microphone)

    80 - 18000 Hz

  • Compander

    HDX

  • Audio-XLR connector

    3,5 mm jack

  • Presets

    12

  • Microphone

    dynamic

  • Sound pressure level (SPL)

    154 dB(SPL) max.

  • THD, total harmonic distortion

    < 0,9 %

  • Weight

    Receiver: ~ 160 g

  • Weight

    Transmitter: 450 g

  • AF sensitivity

    2,1 mV/Pa

  • Signal-to-noise ratio

    > 110 dB(A)

  • RF output power

    30 mW

  • Transmission/receiving frequencies

    1680

  • Switching bandwidth

    42 Mhz

  • Peak deviation

    +/- 48 kHz

  • In compliance with

    ETS 300422, ETS 300445, CE, FCC

  • Operating time

    Transmitter: typ. 8 h

  • Audio output level (unbalanced)

    +10 dBu max
