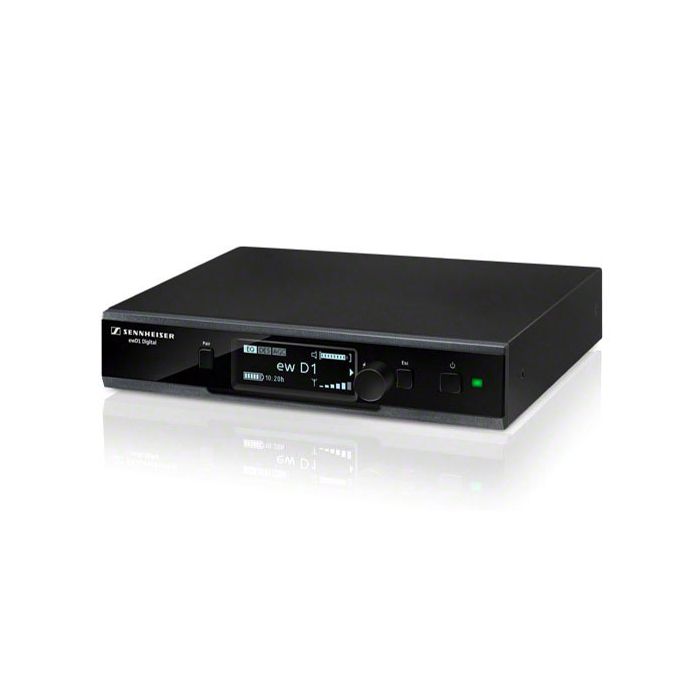

Sennheiser EM D1-NH-NT Wireless Microphone Receiver

Evolution wireless D1 stationary receiver to use with SK D1 bodypack transmitter or SKM D1 handheld transmitter for live stage use.

Evolution wireless D1 is a digital sound transmission system that makes no compromises when it comes down to reliability, sound quality or user-friendliness. ew D1 is the number one for every gig and live event when you need to simply rely on pure brilliance. It can run up to 15 output lines in parallel and independently adjust the sensitivity of every transmission.

FEATURES

• Clear and intuitive OLED display with self-explanatory menu structure for easy handling and quick set-up

• Self-configuration of multiple receivers – no manual frequency settings necessary

• License-free 2.4 GHz band, no registration costs

• Sturdy metal housing

Product Specs

• RF sensitivity

  <-90 dBm

• RF output power

  back channel 10 mW/100 mW (country-specific)

• Audio output

  Mic/line level switch –24 dB/0 dB, XLR, balanced max +18 dBu, Jack, unbalanced/balanced max +12 dBu/max +18 dBu

• • Low-cut filter

    –3 dB at 120 Hz

  • Equalizer

    7-band graphic equalizer

  • Latency

    multi-frequency targets

  • Automatic gain control (AGC)

    compression/expansion with automatic make-up gain function

  • Display

    OLED

  • Connection

    XLR/¼" (6.3 mm) jack

  • Antenna connector

    2 x Rev-SMA

  • Network socket

    RJ45

  • Network protocol

    Media Control Protocol, UDP IPv4 (DHCP, Manual)/IPv6

  • Power supply

    12 V DC hollow jack

  • Current consumption

    350 mA

  • Weight

    approx. 824 g
