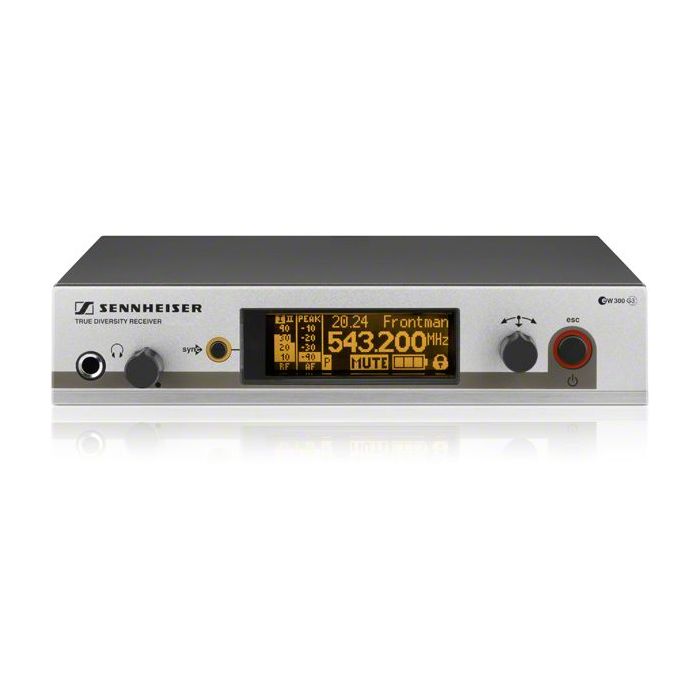

Sennheiser EM 300 G3-A-X Rack Mount Single Receiver

Sennheiser understands that the more self-reliant a device is, the more artistic freedom there is to enjoy. With this in mind, this new receiver has a built-in Ethernet port for remote PC monitoring and setup with Sennheiser's Wireless System Manager software. This receiver's wireless sync function makes it a breeze to link up any G3 transmitter with the unit. In addition, it has a large backlit graphic display where receiver and transmitter information can be easily seen even on the darkest of stages.

FEATURES

• Highest reception quality thanks to true diversity technology

• Scan function identifies available frequencies

• User-friendly menu operation with backlit graphic display

• Sturdy metal housing

• 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception

• Enhanced frequency bank system with up to 24 compatible frequencies

• Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems

• Pilot tone squelch for eliminating RF interference when transmitter is turned off

• Enhanced AF frequency range

• Wireless synchronization of transmitter parameter from receiver

• Illuminated graphic display, receiver also shows transmitter settings

• Auto-Lock function avoids accidental changing of settings

• HDX compander for crystal-clear sound

• Receiver shows transmitter battery indicatation in 4 steps

• Integrated Equalizer and Soundcheck mode

• Wide range of accessories adapts the system to any requirement

Product Specs

• Frequency range

  606...648 MHz
  823...865 MHz / Power supply unit UK
  823...865 MHz / Power supply unit EU / Germany
  823...865 MHz / Power supply unit EU
  780...822 MHz / Power supply unit UK
  780...822 MHz / Power supply unit EU / Germany
  780...822 MHz / Power supply unit EU
  734...776 MHz / Power supply unit US
  734...776 MHz / Power supply unit EU
  626...668 MHz / Power supply unit US
  626...668 MHz / Power supply unit EU
  566...608 MHz / Power supply unit US
  566...608 MHz / Power supply unit EU
  516...558 MHz / Power supply unit EU

• Frequency band

  516...558 MHz / Power supply unit US

• Dimensions

  212 x 202 x 43 mm

• • Frequency response (microphone)

    25.....18000 Hz

  • Compander

    HDX

  • Audio-XLR connector

    XLR / 6,3 mm jack

  • Presets

    max 24

  • THD, total harmonic distortion

    < 0,9 %

  • Weight

    980 g

  • Signal-to-noise ratio

    > 115 dB(A)

  • RF frequency range

    516..... 865 MHz

  • Transmission/receiving frequencies

    1680

  • Switching bandwidth

    42 MHz

  • Peak deviation

    +/- 48 kHz

  • In compliance with

    ETS 300422 , ETS 300445 , CE , FCC

  • Antenna connector

    2 BNC, 50 Ohm

  • Audio output level (balanced)

    XLR: +18 dBu max

  • Audio output level (unbalanced)

    Jack: +12 dBu max
