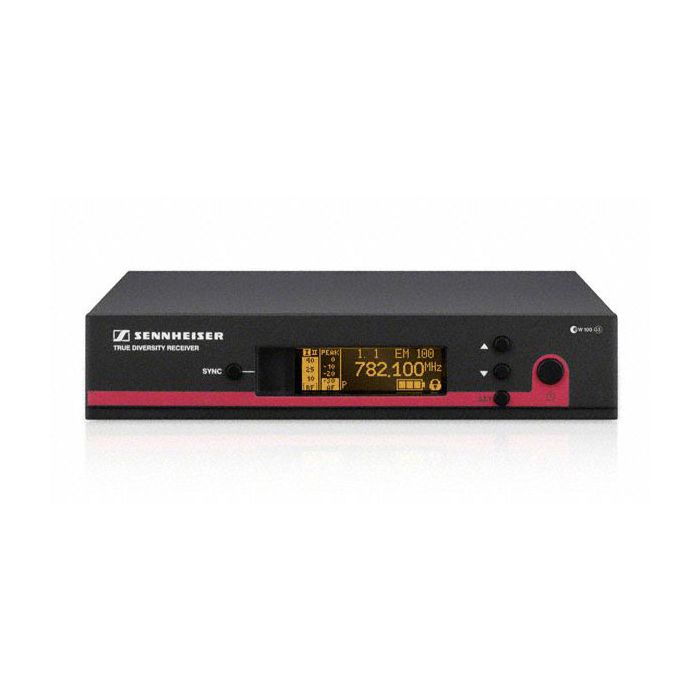

Sennheiser EM 100 G3-A-X Rack Mount Single Receiver

With its improved design and new features, this rugged G3 rack receiver is ready for the road with its proven transmission reliability and inspiring flexibility. The sound check mode allows you to check the audio and RF signal at any time during setup. 20 frequency banks with 12 preset frequencies each, plus a user-programmable bank mean you can easily run multiple channels of G3 wireless simultaneously.

FEATURES

• Sturdy metal housing

• 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception

• Enhanced frequency bank system with up to 12 compatible frequencies

• High-quality true diversity reception

• Pilot tone squelch for eliminating RF interference when transmitter is turned off

• Automatic frequency scan feature searches for available frequencies

• Enhanced AF frequency range

• Wireless synchronization of transmitters via infrared interface

• User-friendly menu operation with more control options

• Illuminated graphic display

• Auto-Lock function avoids accidental changing of settings

• HDX compander for crystal-clear sound

• Receiver features transmitter battery indicatation in 4 steps

• Integrated Equalizer, Soundcheck mode and guitar tuner

• Wide range of accessories adapts the system to any requirement

Product Specs

• Frequency range

  606...648 MHz
  823...865 MHz / Power supply unit UK
  823...865 MHz / Power supply unit EU/Germany
  823...865 MHz / Power supply unit EU
  780...822 MHz / Power supply unit UK
  780...822 MHz / Power supply unit EU/Germany
  780...822 MHz / Power supply unit EU
  734...776 MHz / Power supply unit UK
  734...776 MHz / Power supply unit US
  734...776 MHz / Power supply unit EU
  626...668 MHz / Power supply unit UK
  626...668 MHz / Power supply unit US
  626...668 MHz / Power supply unit EU
  566...608 MHz / Power supply unit UK
  566...608 MHz / Power supply unit US
  566...608 MHz / Power supply unit EU
  516...558 MHz / Power supply unit UK
  516...558 MHz / Power supply unit US
  516...558 MHz / Power supply unit EU

• Dimensions

  212 x 202 x 43 mm

• Frequency response (microphone)

  25 - 18000 Hz

• • Compander

    HDX

  • Audio-XLR connector

    XLR / 6,3 mm

  • Presets

    12

  • THD, total harmonic distortion

    < 0,9 %

  • Weight

    900 g

  • Signal-to-noise ratio

    > 110 dB(A)

  • RF frequency range

    516 - 865 MHz

  • Transmission/receiving frequencies

    1680

  • Switching bandwidth

    42 MHz

  • Peak deviation

    +/- 48 kHz

  • In compliance with

    ETS 300422, ETS 300445, CE, FCC

  • Antenna connector

    2 BNC, 50 Ω

  • Audio output level (balanced)

    XLR: +18 dBu max

  • Audio output level (unbalanced)

    Jack: +12 dBu max
