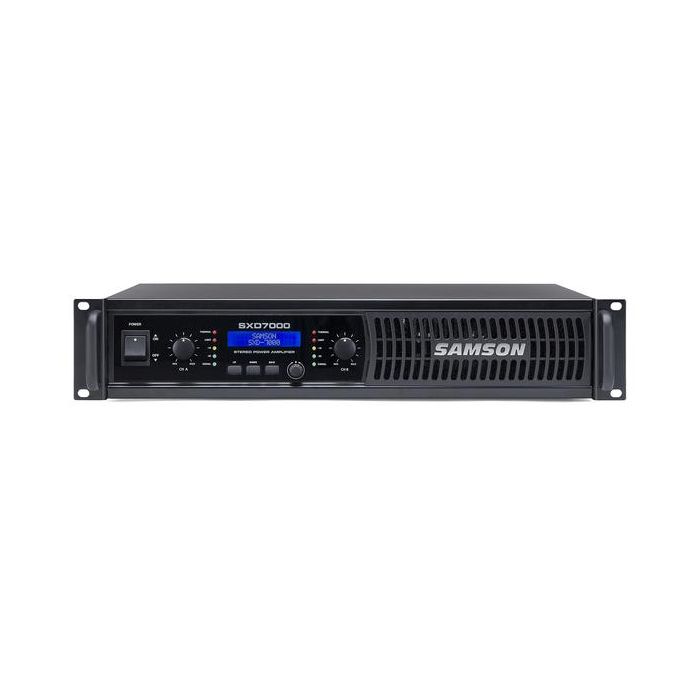

Samson SXD7000 - Power Amplifier with DSP
Brand
SAMSON
The SXD7000 Power Amplifier with DSP by Samson is for live sound reinforcement. It is used in various environments in audio applications to provide clean power for speakers such as in DJ setups, houses of worship, front of house, live stage performance and more. It features 1000W power per side at 4 Ω.
The SXD7000 Power Amplifier with DSP by Samson is for live sound reinforcement. It is used in various environments in audio applications to provide clean power for speakers such as in DJ setups, houses of worship, front of house, live stage performance and more. It features 1000W power per side at 4 Ω. This amp is designed to provide clean output with low distortion and a wide dynamic range over a frequency spectrum of 20 Hz to 20 kHz.
The SXD7000 is built with advanced DSP and is controlled via a backlit LCD for use in low-lit environments. The power amp provides extensive control over high and low pass filters, a 3-band EQ, output limiter and delay time for speaker alignment. It also features four presets to provide optimal settings for various standard speaker configurations. A digital pass code security lock is also provided.
All of the SXD7000's amp channels offer multi-segment LED metering and level controls with detents. Settings of gain and sensitivity can be monitored on the front panel LCD. Input connections for the power amp are made via balanced combination XLR and 1/4" connectors. The amp provides both Binding Post and Speakon connectors for speakers. It is built with an all-steel chassis in a 19" rack mount design and has convenient carry handles making it ready for the rigors of the road. A power cord in included.
Features
- Professional stereo power amplifiers with advanced DSP control
- Ample power for most performance and installation speaker configurations
- 1,000 watts per side at 4 ohms
- Crystal clear audio guaranteed (0.01% THD, 102dB SNR, 20Hz–20kHz frequency response)
- Editable presets for DJ, live sound and commercial installations
- Front panel LCD for navigating DSP settings, including Crossover, Filter, EQ, Limiter, Delay and more
- Individual channel level controls with detents for accurate setting of gain and sensitivity
- Multi-segment LED metering on each channel
- XLR and 1/4" inputs
- Binding Post and Speakon® outputs
- Dual rack space design
Product Specs
| Rated Output Power | Stereo Both Channels Driven: 8 Ω 700 W 4 Ω 1000 W |
| Signal to Noise Ratio | 20 Hz to 20 kHz: >100 dB |
| Distortion | SMPTE-IM: 0.02% |
| Input Sensitivity | At 8 Ω Voltage Gain: 5 dBu |
| Voltage Gain | 34 dB |
| Output Circuit | 2-Tier Class H |
| Current Consumption | 115 VAC: At 1/8 Rated Power 4 Ω: 5.5 A At 1/3 Rated Power 4 Ω: 9.2 A At Rated Power 4 Ω, Max: 16 A |
| Distortion | Typical @ 4 Ω: 20 Hz to 20 kHz, 10 dB Below Rated Power: 0.02 % 1 kHz, Rated Power: 1 % |
| Frequency Response | At 8 Ω 1 W, 0/-1 dB: 20 Hz to 20 kHz |
| Damping Factor | 400 Hz: 120 |
| Input Impedance | 20 kΩ balanced |
| Input Clipping Level | 10 Vrms (22 dBu) |
| Cooling | Continuously variable speed fan cooling |
| Connector | Inputs: 2 x 3-pin XLR 2 x 1/4" (0.63 mm) TRS, balanced Outputs: 4 x Binding post 2 x Speakon |
| Indicators | Signal, -20 dB, 10 dB, limit, thermal |
| Protection | Short circuit, open circuit, thermal, RF protection Load protected against DC faults |
| Manufacturer | SAMSON |
|---|
