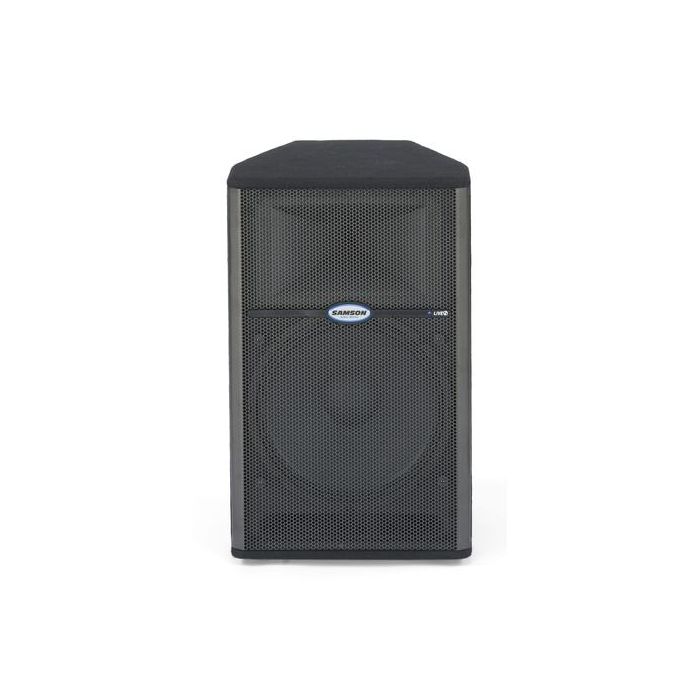

Samson Live! 615-2-Way Active Loudspeaker
Brand
SAMSON
Excellent design and high quality components in all-plywood cabinets are what make Samson's new Live! Active PA enclosures the ideal choice in a small to medium loudspeaker system.
Excellent design and high quality components in all-plywood cabinets are what makeSamson's new Live! Active PA enclosures the ideal choice in a small to medium loudspeaker system. Perfect for portable or installation applications, the Live! series features advanced amplifier design, high power-handling speaker components, EQ sections designed specifically for the speakers and separate speaker processing for both highs and lows. The durable, lightweight construction also ensures years of solid performance with a great looking enclosure that will complement any sound system perfectly.
- Two-way bi-amped active loudspeaker system
- 300 watts RMS total power (LF 250 watts + HF 50 watts)
- Custom designed, heavy-duty, 15-inch low frequency driver with 3-inch voice coil
- 34 mm titanium compression driver with 1-inch exit
- Dual limiter speaker processing
- All plywood construction
- Balanced microphone and line level inputs with two-band EQ
- XLR extension jack with Mix/Thru switch
Product Specs
| Active or Passive | Active |
| Frequency Response | 45Hz - 22kHz |
| Amplifier | LF: 250W RMS HF: 50W RMS |
| Maximum Sound Pressure Level (SPL) | Not Specified by Manufacturer |
| Crossover | 2.3kHz, 3-Pole, 24dB/Octave |
| Low Frequency Driver | 15" (381mm) Heavy-Duty Transducer with 3" Voice Coil |
| High Frequency Driver | 1.75" (44mm) Titanium Compression Driver with Edge-Wound Copper Voice Coil |
| Enclosure Material | Plywood |
| Connectors | 1 x XLR Mic Input 1 x XLR Line Input 1 x XLR Line Output 1 x AC Power Input |
| Controls and Indicators | 1 x Blue Power LED 1 x Green/Red Amp/Clip LED 1 x Mic Level Control Knob 1 x Line Level Control Knob 1 x LF EQ Knob 1 x HF EQ Knob 1 x Output Selector Switch 1 x Power Switch 1 x Voltage Selector Switch |
| Mounting | 1 x 1.375" (35mm) Pole Mounting Socket |
| Dimensions (HxWxD) | 28.1 x 17.7 x 15.75" (715 x 450 x 400mm) |
| Weight | 52.5 lbs (23.9kg) |
| Manufacturer | SAMSON |
|---|
