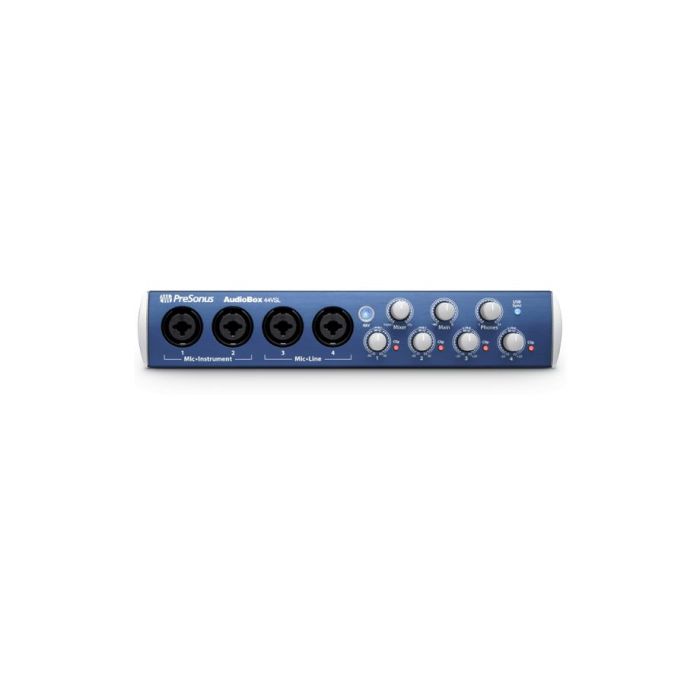

PreSonus AudioBox 44VSL Audio Interface

Brand

PRESONUS

Be the first to review this product

PRESONUS

Out of stock

SKU

PreSonus-AudioBox-44VSL-Audio-Interface

AED 1,000.00

We don’t want to push the Goldilocks analogy too far but if two-channel audio interfaces are too small for your needs, and interfaces with eight or more channels are overkill, then our four-in, four-out AudioBox® 44VSL will be just right. With the AudioBox 44VSL and included Studio One® Artist software, you can record up to four tracks at a time with professional-caliber 24-bit, 96 kHz audio quality, using crystal-clear, high-headroom XMAX; preamps. And the AudioBox 44VSL is ready to travel, thanks to a rugged, compact enclosure, so you can create your next hit in your personal studio or your hotel room.

Wishlist Compare

Details

A professional audio interface that’s just the right size.

XMAX preamps + 96 kHz sampling = great sound.

The AudioBox 44VSL features the same award-winning Class A XMAX preamps featured in our StudioLive AI mixers, found in recording studios and venues the world over. Record and play back at sampling rates up to 96 kHz, with remarkably low noise. If that’s all geek to you, here’s the simple version: This thing sounds great.

Perfect for small bands, DJs, and just about everyone else.

The AudioBox 44VSL’s two combo mic/instrument and two combo mic/line inputs make it extremely versatile, enabling you to use it with microphones, guitars, keyboards, DJ gear, and more. A mix control blends the input signal with the computer playback stream for zero-latency monitoring so you can overdub new tracks without hearing annoying delays. With its MIDI I/O, you can connect the AudioBox 44VSL to virtually any standard MIDI instrument or control surface. And you get four line-level audio outputs, enabling you to simultaneously feed and switch between two sets of monitor speakers or DJ gear.

These features make the AudioBox 44VSL a simple, affordable solution for small bands, DJs, school music labs, and virtually all instrumentalists.

Roadworthy and ready to travel.

We gave the AudioBox 44VSL a heavy-duty steel chassis and metal knobs, so it can take a serious pounding and remain completely reliable. Its screaming-loud headphone output ensures you can hear your music loud and clear, even in noisy locations. And despite all of its controls, preamps, and I/O, somehow we managed to shoehorn the AudioBox 44VSL into a half-rackspace case that can be screw-mounted to a standard rack tray (not included).

Designed for the studio. Built for the road.

Whether you're just getting into recording or are a veteran producer who wants to go mobile, the AudioBox 44VSL will give you great sound in a rugged chassis that's ready to hit the road when you are. The perfect companion for any recording software, the AudioBox 44VSL comes equipped with Studio One Artist to provide you with a complete recording solution right out of the box. Check out the AudioBox 44VSL and Studio One at your favorite PreSonus dealer.

Technical Specifications

Microphone Inputs
Connector Type	Combo, XLR, female, balanced
Mic Preamp EIN	-133 dB, 20 kHz BW, max gain, Rs=40Ω, A-wtd
Frequency Response	20 Hz - 22 kHz, ±0.25 dB, unity gain
THD+N	0.002%, +4 dBu, 1 kHz, unity gain, 22 kHz BW, A-wtd
S/N Ratio	97 dB, +4 dBu, 1 kHz, unity gain, 22 kHz BW, A-wtd
Gain Control Range	-15 dB to +65 dB
Input Max Headroom	+16 dBu, < 0.5% THD
Input Impedance	1.7 kΩ
Phantom Power	+48 VDC, 32 mA total unit

Line Inputs
Connector Type	Combo, ¼” TRS, female, balanced
Frequency Response	20 Hz - 22 kHz, ±0.25 dB, unity gain
THD+N	0.002%, +4 dBu, 1 kHz, unity gain, 22 kHz BW, A-wtd
S/N Ratio	98 dB, +4 dBu, 1 kHz, unity gain, 22 kHz BW, A-wtd
Gain Control Range	-20 dB to +20 dB
Input Max Headroom	+21 dBu, < 0.5% THD
Input Impedance	10 kΩ

Instrument Inputs
Connector Type	Combo, ¼” TS, female, unbalanced
Frequency Response	20 Hz - 22 kHz, ±0.25 dB, unity gain
THD+N	0.003%, +4 dBu, 1 kHz, unity gain, 22 kHz BW, A-wtd
S/N Ratio	89 dB, +4 dBu, 1 kHz, unity gain, 22 kHz BW, A-wtd
Gain Control Range	-30 dB to +50 dB
Input Max Headroom	+21 dBu, < 0.5% THD
Input Impedance	1 MΩ

Analog Outputs
Connector Type	¼” TRS, female, impedance balanced
Frequency Response	20 Hz - 22 kHz, ±0.25 dB
THD+N	0.003%, 1 kHz, 22 kHz BW, A-wtd
S/N Ratio	109 dB, 1 kHz, 22 kHz BW, A-wtd
Output Level	+10 dBu, <0.5% THD
Output Impedance	51Ω

Headphone Outputs
Connector Type	¼” TRS, female, stereo
Maximum Power	120 mW/ch @ 60Ω load
Frequency Response	20 Hz - 20 kHz, ±0.5 dB, max gain
THD+N	0.01%, 1 kHz, max gain, 20 kHz BW, A-wtd
S/N Ratio	96 dB, 1 kHz, max gain, 20 kHz BW, A-wtd

Digital
ADC Dynamic Range	114 dB, 48 kHz, A-wtd
DAC Dynamic Range	114 dB, 48 kHz, A-wtd
Host Interface	USB 2.0 high-speed
Bit Depth	24-bit
Sample Rates	44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Maximum Latency	6 ms, analog input to analog output
MIDI I/O	5-pin DIN connectors

Power
External Power Adapter	+12 VDC, 1 A, center-positive (included)
Connector Type	Barrel: 5.5 mm OD, 2.1 mm ID, 9.5 mm length

Physical
Dimensions	1/2U rack-mount (with standard rack tray, not included)
Height	1.75” (44.45 mm)
Depth	5.5” (139.7 mm)
Width	9.5” (241.3 mm)
Road-rugged construction with all-metal chassis and metal knobs
Weight	2.6 lb. (1.2 kg)
