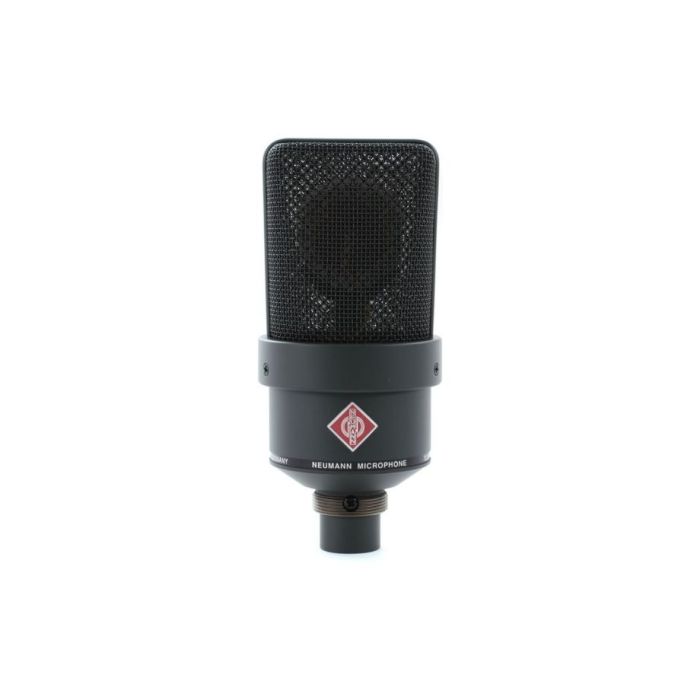

Neumann TLM 103MT Large Diaphragm Condenser Microphone (Black)

Out of stock

SKU

TLM 103MT

AED 4,591.00

By utilizing the tried and true transformerless circuit found in numerous Neumann microphones, the TLM 103 features yet unattained low self-noise and the highest sound pressure level transmission

Wishlist Compare

Details

The TLM 103* is the ideal large diaphragm microphone for all professional and semi-professional applications requiring the utmost in sound quality on a limited budget.

By utilizing the tried and true transformerless circuit found in numerous Neumann microphones, the TLM 103 features yet unattained low self-noise and the highest sound pressure level transmission. The capsule, derived from that used in the U 87, has a cardioid pattern, is acoustically well-balanced and provides extraordinary attenuation of signals from the rear.

The TLM 103 is available in satin nickel and matte black. Delivery includes an SG 1 metal swivel mount and a wooden jeweler's box.

Features

Large diaphragm cardioid microphone

Pressure gradient transducer with with one-diaphragm capsule

Transformerless circuitry

Extremely low noise: 7 dB-A

Includes swivel mount

Straightforward handling for homerecording and professional studios

High-quality professional equipment for limited budgets

Product Specs

Acoustical operating principle	Pressure gradient transducer
Directional pattern	Cardioid
Frequency range	20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm	23 mV/Pa
Rated impedance	50 ohms
Rated load impedance	1 kohms
Equivalent noise level, CCIR¹⁾	17.5 dB
Equivalent noise level, A-weighted¹⁾	7 dB-A
Signal-to-noise ratio, CCIR¹⁾ (rel. 94 dB SPL)	76.5 dB
Signal-to-noise ratio, A-weighted¹⁾ (rel. 94 dB SPL)	87 dB
Maximum SPL for THD 0.5%²⁾	138 dB
Maximum output voltage	13 dBu
Supply voltage (P48, IEC 61938)	48 V ± 4 V
Current consumption (P48, IEC 61938)	3 mA
Matching connector	XLR3F
Weight	approx. 450 g
Diameter	60 mm
Length	132 mm
