Neumann SKM100-MS KM120/140 Stereo Microphone Set
The Neumann SKM 100MS Stereo Microphone Set is simply a stereo combination set consisting of 2 KM 100 phantom power supply / output stages, 1 AK 20 bi-directional (figure 8) microphone element and 1 AK 40 cardioid microphone element.

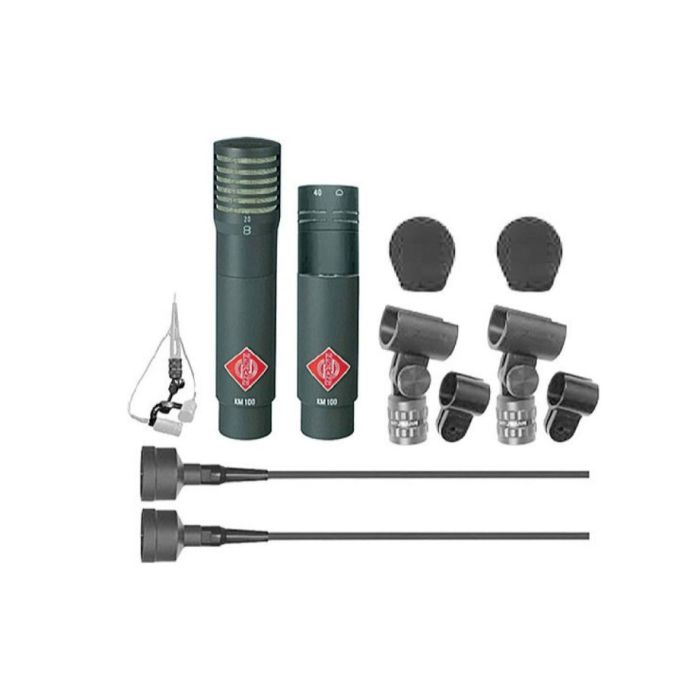

The Neumann SKM 100MS Stereo Microphone Set is simply a stereo combination set consisting of 2KM 100 phantom power supply / output stages, 1 AK 20 bi-directional (figure 8) microphone element and 1 AK 40 cardioid microphone element. Dual swivel mounts, an STH 100 stereo mount and dual windscreens are included and stored in a wooden jewelers case.

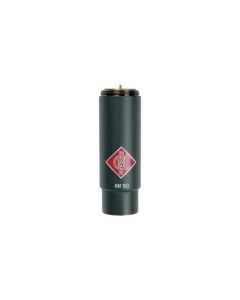

The KM 100 is powered via 48 Volt phantom power and is designed for quick connection to all compatible elements and accessories. The KM 100 uses transformer-less circuitry resulting in high output capability and low self-noise. The balanced XLR output is protected against radio frequency interference. The entire microphone circuitry is built into the capsule on a single hybrid module measuring 2cm in area. The result is a compact, interchangeable output stage providing pristine output signal without any coloration.
Product Specs
| Transducer | Pressure Gradient Condenser (Same for Both Mike's) |
| Polar Pattern | KM140: Cardioid KM120: Figure-8 |
| Frequency Response | 20 Hz - 20 kHz (Same for Both Microphones) |
| Dynamic Range (Typical) | KM 140: 122 dB KM 120: 122.5 dB |
| Signal-to-Noise Ratio | KM 140: 69 dB, Related at 1 Pa at 1 kHz (CCIR dB) 78 dB, Related at 1 Pa at 1 kHz (A-Weighted dB) KM 120: 68 dB Related at 1 Pa at 1 kHz (CCIR dB) 76.5 dB Related at 1 Pa at 1 kHz (A-Weighted dB) |
| Maximum Input Sound Level | KM 140: 138 dB, Less than 0.5% THD (without Preattenuation) 148 dB, Less than 0.5% THD (with Preattenuation) KM 120: 140 dB, Less than 0.5% THD (without Preattenuation) 150 dB, Less than 0.5% THD (with Preattenuation) |
| Power Requirements | Phantom +48v (Same for Both Microphones) |
| Output Impedance | 50 Ohms (Same for Both Microphones) |
| Output Connectors | XLR-3M Type (Same for Both Microphones) |
| Pad | Yes, -10 dB Preattenuation (Same for Both Microphones) |
| Low Frequency Roll-Off | None on Either Microphone, If Low Frequency Roll-Off is Desired, use the AK45 Capsule |
| Dimensions | KM 140: 3.68 x 0.88" (92 x 22mm) LxDdiameter KM 120: 4.4 x 0.88" (110 x 22mm) LxDdiameter |
| Weight | KM 140: 2.82 oz (80g) KM 120: 3.6 oz (102g) |
