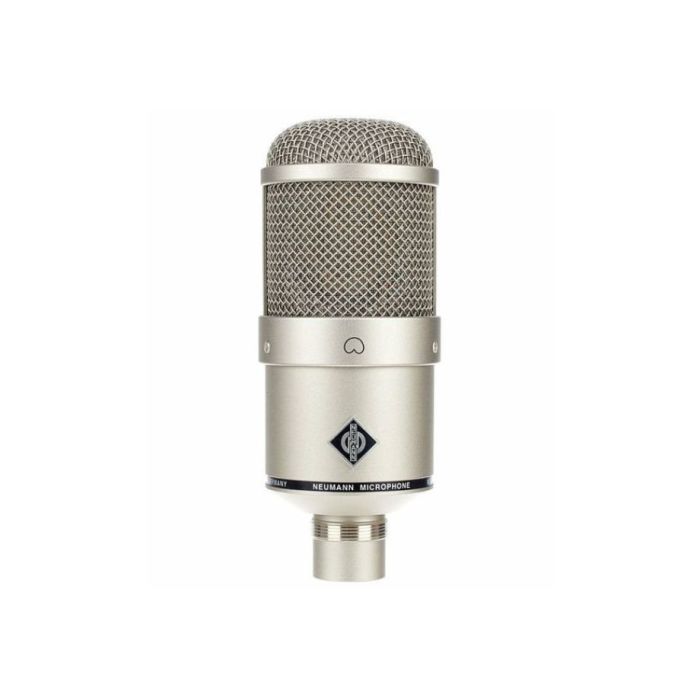

Neumann M147 Tube Microphone
Brand
NEUMANN
The M 147 Tube Microphone from Neumann is a vacuum tube large diaphragm condenser microphone with a cardioid polar pattern. The pressure gradient, dual diaphragm capsule is the K 47/49, inherited from the legendary U 47 and M 49 microphones. Following the tube is a transformerless output circuit providing low self-noise and high output gain without adding color to the signal.
The M 147 Tube delivers high output levels, allowing the microphone to feed cables up to 984.3' in length without signal degradation. The side address capsule features a cardioid polar pattern, which is effective in minimizing ambiance and noise coming from the off-axis sections of the microphone. The capsule features a flat frequency response to the upper mid-range, and a boost of up to 3 dB above 2 kHz. The M 147 Tube is a suitable microphone for recording vocals and general instruments such as strings, piano and wind instruments.
Product Specs
| Operating Principle | Pressure Gradient |
| Transducer | Condenser |
| Tube | Yes |
| Polar Pattern | Cardioid |
| Frequency Range | 20 Hz to 20 kHz |
| Signal to Noise Ratio | 70 dB CCIR 82 dB A-Weighted |
| Equivalent Noise Level | 24 dB CCIR 12 dB A-Weighted |
| Maximum SPL | 114 dB SPL 0.5% 134 dB SPL 5% |
| Impedance | 50 ohms |
| Load Impedance | 1 kOhms |
| Sensitivity | 20 mV/PA @ 1 kHz into 1 kOhms, re: 1 V/Pa |
| Output Connectors | 3-Pin XLR |
| General | |
|---|---|
| Length | 5.59" (142 mm) |
| Diameter | 2.24" (57 mm) |
| Weight | 16.23 oz (460 g) |
| Manufacturer | NEUMANN |
|---|
