Neumann KM150 - Hyper-Cardioid Modular Condenser Microphone with AK50 Capsule

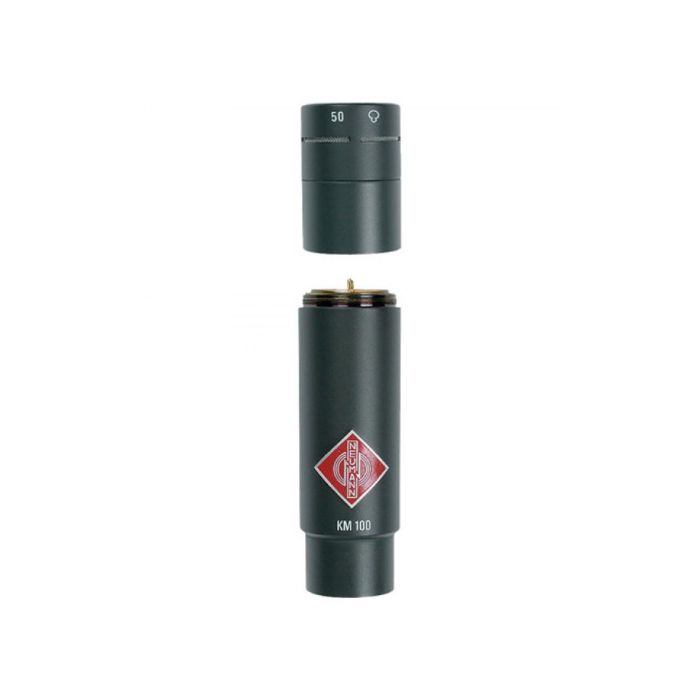

The Neumann KM 150 is simply a microphone combination set consisting of the KM 100 phantom power supply / output stage and AK 50 hyper-cardioid microphone element.
The Neumann KM 150 is simply a microphone combination set consisting of the KM 100 phantom power supply / output stage and AK 50 hyper-cardioid microphone element. Microphone mount and windscreen are also included in the set. Neumann's modular KM 100 series is designed to be versatile with the ability to interchange microphone elements and accessories based on individual applications.
The KM 100 is powered via 48 Volt phantom power and is designed for quick connection to all compatible elements and accessories. The KM 100 uses transformer-less circuitry resulting in high output capability and low self-noise. The balanced LR output is protected against radio frequency interference. The entire microphone circuitry is built into the capsule on a single hybrid module measuring 2cm in area. The result is a compact, interchangeable output stage providing pristine output signal without any coloration.
Product Specs
| Transducer | Pressure Gradient Condenser |
| Polar Pattern | Hypercardioid |
| Frequency Response | 20 Hz - 20 kHz |
| Dynamic Range (Typical) | 124 dB |
| Signal-to-Noise Ratio | 67 dB Related at 1 Pa at 1 kHz (CCIR dB) 76 dB Related at 1 Pa at 1 kHz (A-Weighted dB) |
| Maximum Input Sound Level | 142 dB Less than 0.5% THD (without Preattenuation) 152 dB Less than 0.5% THD (with Preattenuation) |
| Power Requirements | Phantom Power, (+48v) |
| Output Impedance | 50 Ohms |
| Output Connectors | XLR-3M Type |
| Pad | Yes, (-10 dB Preattenuation) |
| Low Frequency Roll-Off | None, If Low Frequency Roll-off is Necessary, use the AK45 Capsule |
| Dimensions | 3.68 x 0.88" (92 x 22mm) LxDiameter |
| Weight | 2.82 oz. (80 g) |
