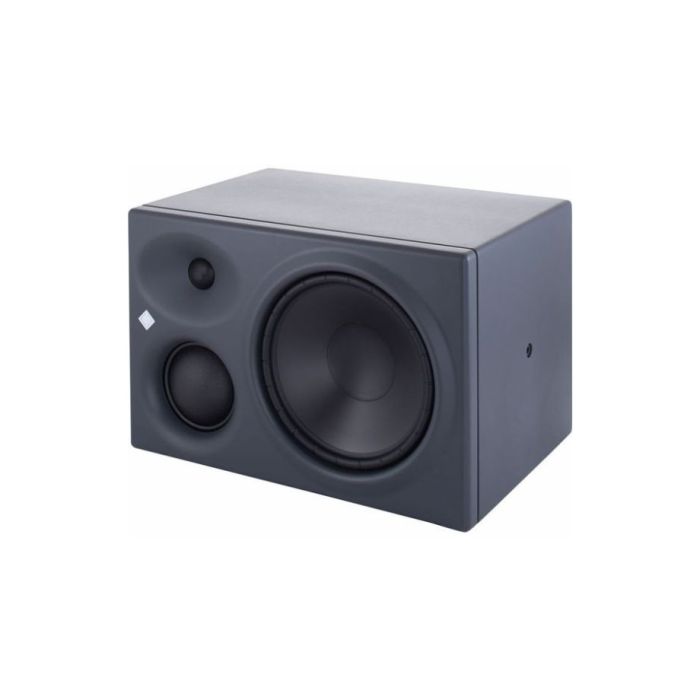

Neumann KH 310 ALG- Active Studio Monitor - Left Monitor

The KH 310 three-way active tri-amplified monitor features a Mathematically Modeled Dispersion™ Waveguide (MMD™), flexible acoustical controls, various input options and an extensive range of mounting hardware. This allows the loudspeaker to be used in diverse acoustical conditions, with any source equipment and in a wide variety of physical locations. The KH 310 represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible.

Product Specs

Acoustics
Free field frequency response			34 Hz - 21 kHz, ± 3 dB
Pass band free field frequency response			36 Hz - 20 kHz, ± 2 dB
Self-generated noise (with input gain set to 100 dB for 0 dBu)			< 20 dB(A) at 10 cm
Total harmonic distortion < 0.5 % at 95 dB SPLat 1 m			> 85 Hz
Max. SPL in full space / calc. in half space at 3% THD at 1m			110.3 / 116.3 dB SPL (averaged between 100 Hz and 6 kHz)
Bass capability: Max. SPL in half space  at 3% THD at 1m			104.5 dB SPL  (averaged between 50 Hz and 100 Hz)
Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions			113 dB(C) SPL
Max. short term SPL with music material  at 2.3 m, in typical listening conditions (pair)			100 dB(C) SPL (full range) 107 dB(C) SPL (with subwoofer)
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single/pair)			93 / 99 dB(C) SPL (full range) 94 / 100 dB(C) SPL (with subwoofer)

Electronics
Bass / Midrange / Treble Class AB amplifiers, cont. (peak) output power*			150 W (210 W) / 70 W (90 W) / 70 W (90 W)
Controller design			Analog, active
Crossover frequencies			650 Hz / 2 kHz
Crossover slope			24 dB/oct, 4th order
Equalization - Bass			0, −2.5, −5, −7.5 dB
Equalization - Low Mid			0, −1.5, −3, −4.5 dB
Equalization - Treble			+1, 0, −1, −2 dB
Protection circuitry			Independent thermo limiters for woofer, midrange dome and tweeter. Woofer soft clip and excursion limiters
Infrasonic filter - frequency; slope			15 Hz; 6 dB/oct
Input			XLR, analog electronically balanced
Impedance, electrically balanced			> 13k Ohms
Input gain control (sensitivity)			0 dB to −15 dB
Output level control			94, 100, 108, 114 dB SPL
CMRR			> 56 dB @ 100 - 15 kHz
Max. input level			+24 dBu
Displays and indicators - power on			Neumann logo “White”
Displays and indicators - limit / clip			Neumann logo “Red”
Mains Power Supply, voltage; frequency			100-240 V~; 50/60 Hz
Power consumption - idle			24 W
Power consumption - full output			300 W
Mechanics
Cabinet surface finish, colour			Painted wood and polyurethane,  metallic anthracite (RAL 7021).  Aluminum electronics panel, Black.
Baffle cover			Optional removable metal grille
Operating conditions			+10° C to +40° C (+50° F to +104° F),  <90% RH, non-condensing
Transport/storage condition			−25° C to +70° C (−13° F to 158° F),  <90% RH, non-condensing
Drivers			Magnetically shielded
Woofer			210 mm (8 1/4")
Midrange			75 mm (3")
Tweeter			25 mm (1")
Mounting points			2 x M8 on side panels, depth from outside of cabinet 25 mm (1”). Rear panel screws for attaching LH 41 base plate. Rear panel bracket.
Product dimensions  (height x width x depth), mm (inches)			253 x 383 x 292 mm  (10" x 15 1/8" x 11 1/2")
Net volume, internal / external			16.2 liters / 28.3 liters
Product weight			13.0 kg (28 lbs 11 oz)
Packed dimensions  (height x width x depth), mm (inches)			360 x 380 x 590 mm (14 1/8" x 15" x 23 1/4")
Packed weight and cube			16.8 kg (37 lbs 1 oz), 0.081 m³
Delivery includes			1x KH 310 A   3x Main cables (European, UK and US version 4x Self-adhesive feet   1x Operating manual   1x Supplement "Getting Started Quickly"
