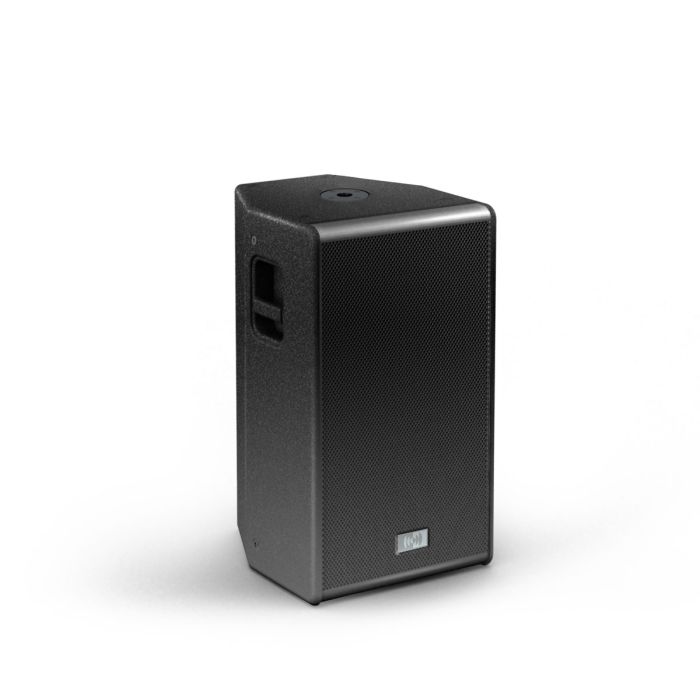

Montarbo SPOT1500 2-Way Active Bi-Amplified Speaker

SPOT1500 represents the ''light'' version of the SPOT 2500T: there is no bass cabinet with it's dedicated amplifier. It is a high directivity, long throw compact system, characterized by extremely high intelligibility, even at long distances, making it the perfect choice for live applications. This system was designed to simplify the task of assembling clusters by simply placing multiple enclosures side-by-side when wider horizontal dispersion is required. SPOT1500 is equipped with class D amplifiers controlled by the Montarbo DSP loudspeaker processor (56 bit, 180 MHz, 24 bit converters) which provides filtering, equalization, delay, limiting and diagnostic functions. This DSP utilizes an advanced algorithm for the real time control of both the power output and the temperature (both internal and external) of the amplifier; it also includes a dedicated standby function which results in reduced power consumption when no signal is present.

- 2 class-D amplifiers (with switching-mode power supplies) that can supply a total of 1500 Watts EIAJ (1000 W for the LF drivers, 500 W for the HF).
- 135 dB max SPL.
- 15'' woofer with 4'' voice coil, featuring a shielded front-mounted neodymium magnet.
- HF driver with a 1.4'' throat and a 3'' voice coil, featuring a neodymium magnet and titanium diaphragm.
- High directivity (50° H x 40° V) wave-guide horn.
- Montarbo 56 bit DSP, 180 MHz, 24 bit converters.
- Dedicated standby function.
- Processed auxiliary output allows to drive an external subwoofer.
- 5 presets one of which may be customized and loaded into the DSP.
- Presets remote control and customization by means of the proprietary software program RAConLS™ and the optional LD2.4 USB interface.
- With a single LD2.4 USB interface it is possible to operate up to 10 speaker systems of the SPOT, WIDE and FULL series.
- The geometry of the cabinet allows for easy construction of clusters. A 3-system cluster results in a 150° horizontal coverage.
- Birch plywood cabinet, finished with anti-abrasion paint.
- Threaded studs (M10) for safe and simple suspension; adapter for a supporting pole; 2 ergonomically designed handles.
