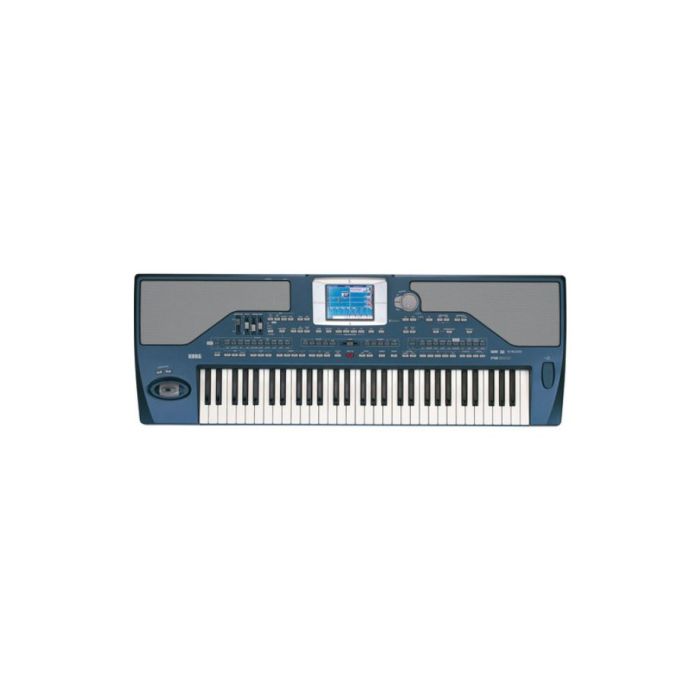

KORG Pa800 Professional Arranger Keyboard

Korg Pa800 61-Key Arranger Keyboard

With its huge palette of customizable sounds and Styles, expansive editing tools, and tweakable effects, the Korg Pa800 Arranger keyboard will have you wondering if there is such a thing as too much control. This 61-key professional arranger keyboard offers so many ways to get the best sounds ever, even players that regularly rely on Korg presets will find a way to dig into tone tweaking! For serious audiophiles and tweak fiends who happen to be working musicians, too, the Pa800 offers hours of fun.

So Many Sounds

Velocity-sensitive keys with Aftertouch allow you to get real expressive and musical during a performance, and with over 900 sounds and over 60 drum sounds to choose from, you'll never complain about playing the same old thing. The Pa800's factory sound set comes with a multilayer stereo acoustic piano sampled from a real concert grand, as well as 64 drum kits. Storage for up to 256 user sounds and 64 drum kits, plus a complete collection of sound-editing tools round out the Arranger's expansive sound section. If nearly a thousand available sounds don't float your boat, you can load your own WAV, AIFF, Korg format files, and sample libraries into the Pa800's standard 64 MB of added memory.

950 Korg Styles On Board

"Pa" stands for Professional Arranger, and it wouldn't be a pro arranger synth without awesome auto-accompaniment Styles on board. Detailed, realistic-sounding Styles programmed by some of the world's top arrangers are preloaded in the Korg Pa800, covering a range of musical genres. With 3 Intros/Count Ins, 3 Fills, 4 Variations, and 3 Endings for every Style, your playing will have plenty of support from the Pa800's built-in backing band. And if you would prefer to use and make your own, you can record and edit 416 of your own Styles on the keyboard.

Professional editing tools such as loop, cut, normalize, and sample cropping give you complete control over your tone, while a special feature called Time Slice lets you create custom rhythms.

Did Someone Say Multi-FX?

High-quality effects make the Pa800 a versatile instrument ideal for both studio and stage. This 61-key Arranger sports four Stereo Master Effects processors with hundreds of effects, from reverb, delay, and chorus through to specialized effects like a vocoder and REMS guitar-based effects for realistic guitar tones. On the Pa800, vocal effects (EQ, compressor, noise reduction, echo, reverb) are completely separate and independently controlled.

Some Real eXperience Required

Korg's RX (Real eXperience) technology drives the Pa800's realistic sound, while the TC Electronic/TC Helicon voice processor lends the keyboard its EQ and pro-quality vocal effects. Reverb, echo, and other effects, along with the three-voice harmonizer and mic pre, are all at your fingertips on the top panel and in the display's main page, ready to give your vocals and backup tracks the finishing touch. Just connect a microphone and start playing.

Two separate MIDI file players give the Pa800 stellar sequencing functions. Of course, the versatile keyboard supports SMF (Standard MIDI File), Karaoke files, and GM (General MIDI).

As for connectivity, the Pa800 offers 4 separate audio outputs, 2 mic/line inputs with separate gain, 2 USB Host connections, and 1 USB (Device) connection.

Features:

- Arranger keyboard with 61 Velocity-sensitive keys and Aftertouch
- Over 950 Styles and over 900 sounds give you many performance options
- Load your own WAV, AIFF, Korg format files, and sample libraries for even more sounds
- Editing tools such as loop, cut, normalize, sample cropping, and "Time Slice" are available
- TC Helicon vocal effects (reverb, echo, and more) and EQ provide outstanding vocal support
- Studio-quality effects come from 4 Stereo Master Effects processors
- Use the programmable multi-track sequencer Backing Sequences to create songs based over styles
- Korg's RX (Real eXperience) technology gives the keyboard a natural, believable sound
- Easy-to-use graphical user interface (GUI) with color touch screen
- Supports SMF, Karaoke files, and GM
- Connectivity: 4 audio outs, 2 mic/line ins with separate gain, 2 USB Host connections, and 1 USB connection

zZounds is an authorized dealer of Korg products.

Power Supply: Power Cord (Included)

Keyboard: 61 keys with Velocity and Aftertouch

System:
RX (Real eXperience) Technology
OPOS (Objective Portable Operating System) Multitasking (Load while play feature)
Upgradable Operative System
SSD Solid State Disk

Tone Generator:
KORG HI Synthesis (Hyper Integrated)
120 Voices, 120 Oscillators
Filters with Resonance
EQ for each track

Effects:
4 Stereo Digital Multi-Effect systems
124 Effects types plus VOCODER
Voice Processor Technology by TC Helicon: Three-part Harmonizer, Reverb, Delay, Compressor, EQ

Sounds & Drum Kits:
More than 950, including a Stereo Piano and GM Level 2 compatible Sounds
63 Drum Kits - User area: 256 Sounds, 64 Drum Kits
Digital Drawbars: 8 Footages
Realtime control: Assignable Sliders
Full editing of Sounds and Drum Kits
Sampling: Record, Edit, Time Slice, Load/Import of Korg, Wav, Aiff and Akai files
Export of Wav and Aiff files
PCM RAM Memory: 64 MB standard

Styles:
More than 400 preloaded Styles, SSD-resident, freely reconfigurable
Up to 960 available Style locations including the Favorite banks
Eight Style tracks, 4 Single Touch Settings and one Style Performance per Style
Compatible with old "i-Series" and Pa series Style format
Style Record with Step Record, Track and Event Edit functions
Style controls: 4 Variations, 3 Fills, 3 Intros, 3 Endings, Synchro Start/Stop, Tap Tempo/Reset, Fade In/Out, Bass Inversion, Manual Bass, Tempo Lock, Memory, Accompaniment/Real Time Track Balance Volume, Accompaniment Mute, Drum Mapping, Snare & Kick Designation, Single Touch

Performance/STS:
320 Realtime Performance locations
STS: Memorize Realtime tracks and Voice Processor settings, up to 4 x 960 Styles, up to 4 x SongBook entries

Realtime Tracks:
Four Keyboard tracks (Upper 1, 2, 3, Lower)
4 Pad tracks

Song Play:
Patented XDS Crossfade Dual Sequencer player
2 Sequencers with separate Select, Start/Stop, Home, Rewind and Fast Forward controls
Balance control
Lyrics data can be displayed on-screen, or on an external video monitor (with VIF4 option installed)
Markers
Jukebox function
Compatible with (formats 0 and 1)

Sequencer:
Quick Record (Backing Sequence), Multitrack and Step Record functions
Full-featured sequencer
16 tracks
Up to 200,000 events
SMF native format

SongBook:
Fully programmable music database, based on Styles, SMF, Karaoke with automatic selection of Style Play and Song Play modes
User-definable custom lists
Filtering options

Compatibility:
"i-Series" models: Styles
Pa series: Style, Performance, Program/Sound, Song, SongBook

Multi Pad:
4 Assignable Pads + Stop Button
Pad Record function

Help System: Hypertextual, Contextual, Multilingual

General Controls: Master Volume, Real Time-Acc/Seq Balance Volume, Ensemble, Octave Transpose, Master Transpose, Style Change, Quarter Tone and Arabic Scale memorized inside Performance/STS

Realtime controllers: Joystick (pitch + modulation), 2 Assignable Sliders, 2 Assignable Switches, Dial, Up/+, Down/-

Control Inputs: Damper Pedal (Support Half-Pedaling), Assignable Pedal/Switch, EC-5 (Programmable Multi-Switches)

Analog Output: Unbalanced Jack Left/Mono, Right, Out 1, Out 2, Headphones

Analog Input: 2 Unbalanced/Balanced (automatic switch) Jack Line In with separate Gain control

MIDI:
In, Out, Thru standard MIDI connectors
USB MIDI using the USB Device port
Individual track assignment
8 user definable MIDI Setups

USB: Host Front/Rear (2.0 Hi Speed) and 1 Device Rear (1.1 Full Speed) connections

Hard Disk: Optional 2.5 in. ATA Hard Disk Drive

CD Player/Writer -- Floppy Disk: Optional standard USB CD-Drives to be connected to USB Host port

Display: 320 x 240 pixels, Color TouchView Graphic Touch Screen

Amplification: 2 x 22 W, Loudness, Fixed EQ

Speakers: 4 Speakers (10 cm Woofers + Tweeters) 2 way in Bass Reflex Box

Consumption: 40 Watt

Dimensions: 43.7 in. (W) x 13.3 in. (D) x 7.1 in. (H) inch without music stand

Weight: 29.3 lbs

Accessories: Manual, AC Power Cable, Music Stand, CD-Rom

Specifications subject to change without notice
