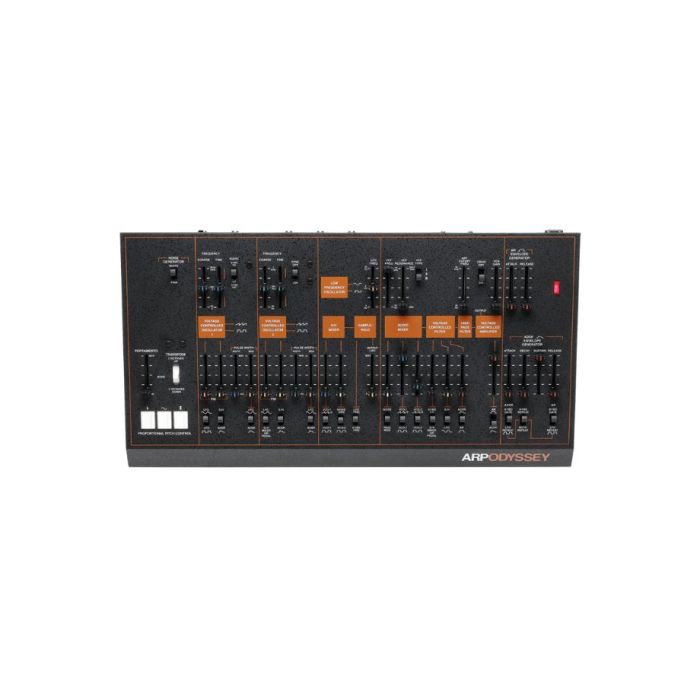

Korg ARP ODYSSEY Module Rev3 Black
Legendary sound that connects the past with the present.
Reborn again as an analog synthesizer module.
Since its appearance in 1972, the ARP Odyssey has been loved by countless musicians as a classic analog synthesizer. Forty years later, in 2015, with the advisory assistance of David Friend, co-founder of the ARP Instruments company, KORG resurrected the ARP ODYSSEY with a complete reproduction of the ARP Odyssey’s original circuitry. The ARP sound, which continues to be envied as an iconic analog synthesizer, was once again back in the hands of today's musicians. Now, KORG has further broadened the reach of the ARP ODYSSEY in today's world by releasing a new model.
The ARP ODYSSEY Module is a keyboard-less ARP ODYSSEY with the very same analog synthesis circuitry that completely reproduces the original. To fit perfectly in today's DAW-centric music production environments, we provide it in a more compact module form. The lineup includes two models, the white Rev1 and the black and orange Rev3, reproducing traditional styling in a cutting-edge tabletop body. The real ARP sound that transcends history is once again available to the world.
True analog sound generated by a complete replication of the original ARP Odyssey's circuitry
The ARP Odyssey is known best for its sharp and biting tone, and the rich possibilities of modulation that allow an incredible variety of sounds. The ARP ODYSSEY Module is equipped with the very same circuitry as the ARP ODYSSEY, which itself is a perfect replica of the original unit, developed under the supervision of the ARP Instruments company's co-founder David Friend. Its module-type design invites the user into an even deeper world of sound design.
- Maximum Polyphony
- 　
- 2 voices for duophonic; normally monophonic
- Controllers
- Transpose Positions
- 2 octaves down, normal, 2 octave up
- Proportional Pitch Control
- b (Pitch down) Pad: about -2 / 3 octave
- (Modulation) Pad
# (Pitch-up) Pad: about +2 / 3 octave
- Noise Generator
- Noise Spectrum Types (white and pink)
- Portamento
- Maximum Speed
- about 0.01 msec./oct
- Minimum Speed
- about 1.5 sec./oct
- VCO (Voltage Controlled Oscillator)
- Waveforms
- Sawtooth, Square, Pluse (Dynamic Pluse)
- Frequency Range
- VCO-1 in low freq. mode, 0.2 Hz – 20 Hz: VCO-1 and VCO-2 (audio range) about 20 Hz – 20 kHz
- Warm Up Drift
- 1/30 semitone from turn on max
- Pulse Width
- 50 % – 5 %
- Pulse Width Modulation
- ADSR, +45 %
LFO, +15 %
- Voltage Controlled Response
- 1 V/oct
- Maximum Frequency Shifts
- LFO sin wave, +1/2 oct.
LFO square wave, +1.5 oct.
ADSR, +9 oct.
S/H, +2 oct. - * VCO-1 is low note priority, VCO-2 is high note priority.
- VCF (Voltage Controlled Filter)
- Types
- Low pass (I: 12 dB/oct., II III: 24 dB/oct.)
- Frequency Range
- 16 Hz - 16 kHz
- Maximum Usable Q
- 30
- Resonance
- 1/2 - self oscillate
- Voltage Controlled Response
- C3 key (left edge): 0 V
C6 key (right edge) 3 V
- VCA (Voltage Controlled Amplifier)
- Dynamic Range
- 80 dB
- Ring Modulator
- Type
- Digital
- Input Signal
- VCO-1, VCO-2 (square wave)
- Sample & Hold
- Command Sources
- Keyboard or LFO trigger
- Sampled Signals
- VCO-1 sawtooth wave and square wave, VCO-2 square wave and pink noise
- ADSR Envelope Generator
- Attack Time
- 5 msec. - 5 sec.
- Decay Time
- 10 msec. - 8 sec.
- Sutatin Level
- 0 - 100 % or Peak
- Release Time
- 15 msec. - 10 sec.
- AR Envelope Generator
- Attack Time
- 5 msec. - 5 sec.
- Release Time
- 10 msec. - 8 sec.
- Control Input Jacks
- Pedal
- 6.3 mm monaural phone jack
- Portamento Foot Switch
- 6.3 mm monaural phone jack
- Audio Output Jacks
LOW
- Connector
- 6.3 mm monaural phone jack
- Maximum Output Level
- -20 dBu@ 10 k ohm load
- Output Impedance
- 10 k ohm
- Audio Output Jacks
HIGH
- Connector
- XLR connector
- Maximum Output Level
- +4 dBu@ 1 k ohm load
- Output Impedance
- 330 ohm
- Headphones Jack
- Connector
- 6.3 mm stereo phone jack
- Maximum Output Level
- 50 mW + 50 mW@ 33 ohm load
- Output Impedance
- 10 ohm
- * Controllable by volume knob.
- External Audio Input (Ext Audio Input) Jack
- Connector
- 6.3 mm monaural phone jack
- Maximum Input Level
- -10 dBu
- Input Impedance
- 22 k ohm
- MIDI Connector
- IN
- USB Connector
- Type B
- CV IN/OUT Jacks
- Keyboard CV (IN/OUT)
- 1 V/oct.
- Connector
- 3.5 mm monaural phone jack
- GATE IN/OUT Jacks
- GATE IN
- +3 V (minimum)
- GATE OUT
- +10 V, key down; 0 V all keys up
- Connector
- 3.5 mm monaural phone jack
- TRIG IN/OUT Jacks
- TRIG IN
- +3 V pulse min., 10 μsec. Duration minimum
- TRIG OUT
- +10 V pulse on key depression, 10 μsec. Duration
- Connector
- 3.5 mm monaural phone jack
- Power Supply
- AC adapter jack (DC 9V)
- Power Consumption
- 6.5 W
- Dimensions (W x D x H)
- 496 x 265 x 89 mm / 19.53” x 10.43” x 3.50”
- Weight
- 3.7 kg / 8.16 lbs
- Design Variations
- White (ARP ODYSSEY Module Rev1), Black and Orange (ARP ODYSSEY Module Rev3)
- Included Items
- AC adapter, phone cable, mini-phone cable
- Accessories
- Expression/Volume Pedal
- XVP-20
- Volume Pedal
- VP-10
- Pedal Switch
- PS-3
- Pedal Switch
- PS-1
- Patch Cables
- SQ-CABLE-6
