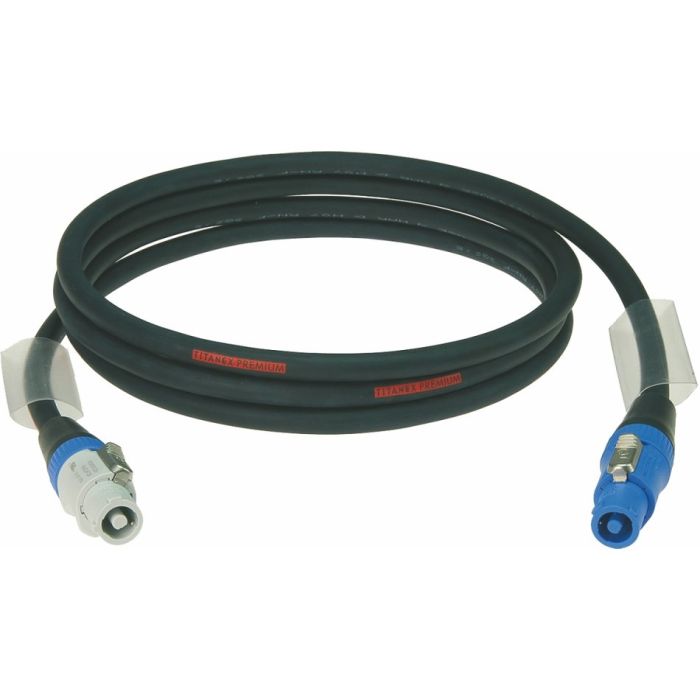

Klotz PT2-BA0010 power cable 3G2.5 powerCON B - powerCON A
Brand
KLOTZ
The PT..--BA cable has powerCON A to B connectors and satisfies IP20 protection requirements. Suitable applications include use as a daisy-chain cable with LED bars and sticks. The powerCON connector must never be plugged in or unplugged when connected to electrical load or current.
The PT..--BA cable has powerCON A to B connectors and satisfies IP20 protection requirements. Suitable applications include use as a daisy-chain cable with LED bars and sticks. The powerCON connector must never be plugged in or unplugged when connected to electrical load or current.
- daisy chain cable for e.g. LED bars and sticks
- IP20 rated
- the powerCON connector must never be plugged in or unplugged when connected to electrical load or current
Product Specs
| length | 1 m |
| cond. cross section | 3 x 2.5 mm2 |
| colour | black |
| weight | 0,3686 kg |
cable
| cable typ | H07RN-F - heavy rubber-sheated cable |
| jacket | cross-linked elastomer with high mechanical strength property |
| heat shrink | transparent, both-sided for free labelling |
connectors
| connector 1 | powerCON cable socket, A-type for power inlet, blue, quick lock, silver-plated contacts |
| contact | silver-plated contacts |
| connector 2 | powerCON B cable socket, B-type for power outlet, grey with blue sleeve, quick lock, silver-plated contacts |
| contact | silver-plated contacts |
| Manufacturer | KLOTZ |
|---|
