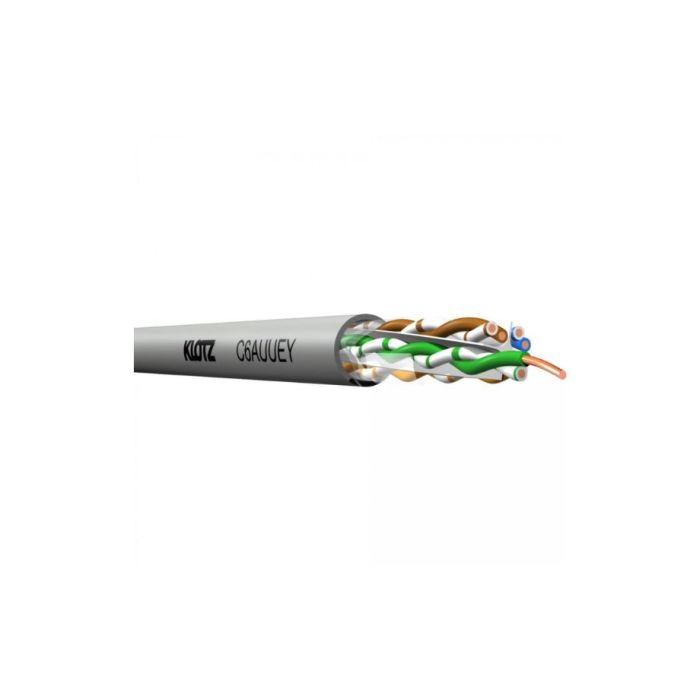

Klotz C6AUUEY.300 professional microphone cable - PVC outer jacket 300m
Brand
KLOTZ
15% OffKLOTZ
Out of stock
SKU
Klotz-C6AUUEY-300
Special Price AED 1,784.72 Regular Price AED 2,099.67
Unshielded data transmission cable for the frequency range up to 500 MHz. Easy to install.
Suitable for IEEE 802.3 10/100/1000/10GBase-T, FDDI, broadband, video, ISDN, ATM.
Unshielded data transmission cable for the frequency range up to 500 MHz. Easy to install.
Suitable for IEEE 802.3 10/100/1000/10GBase-T, FDDI, broadband, video, ISDN, ATM.
Suitable for IEEE 802.3 10/100/1000/10GBase-T, FDDI, broadband, video, ISDN, ATM.
construction
| conductor | solid bare copper wire, Ø 0.57 mm (AWG 23/1) |
| core insulation | polyethylene (PE) |
| core stranding | 2 cores twisted to a pair |
| twisting | within PE-Cross |
| overall diameter | 7.2 mm |
electric
| conductor resistance | < 75 Ω/km |
| insulation resistance | 5 GΩ x km |
| mutual capacitance | 50 nF/km |
| characteristic impedance | 100 Ω ± 15% |
| signal speed | 0.68 c |
properties
| min. bending radius | |
| installation | 8x overall diameter |
| operation | 4x overall diametre |
| temperature range | |
| installation | -20°C / +60°C |
| operation | ±0°C / +50°C |
| flame retardancy | acc. to IEC 60332-1 |
| Manufacturer | KLOTZ |
|---|
