Genelec DI8A Active Balancer

Brand

GENELEC

Be the first to review this product

GENELEC

Out of stock

SKU

DI8A

AED 3,232.00

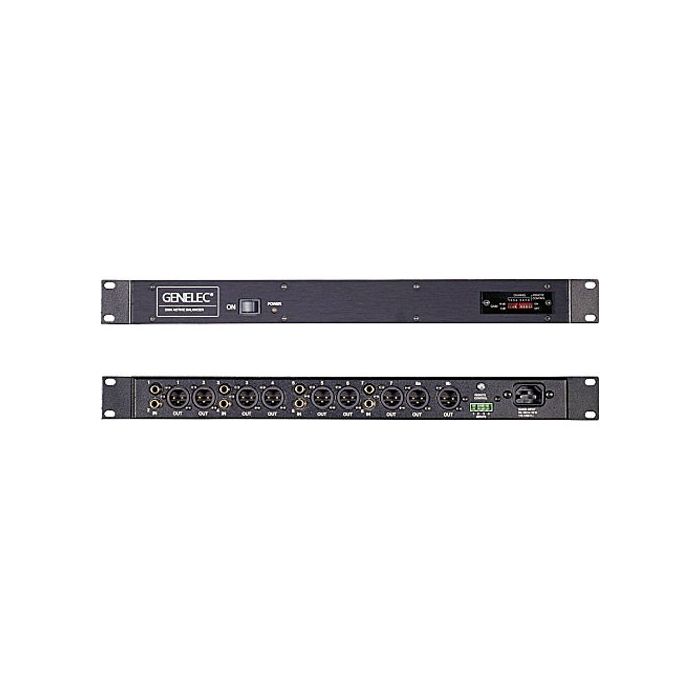

The Genelec DI8A Active Balancer converts eight unbalanced RCA phono signal sources to balanced signals via XLR output connectors. The result eliminates associated noise and susceptibility to electronic interference on long cable runs.

Wishlist Compare

Details

One of the channels is equipped with duplicated outputs for connecting twin subwoofers in large sound reinforcement arrays. A +6 dB gain switch is provided for each channel for increasing the signal level from sources with low output levels. Remote muting capability is available with the "12V trigger" and "contact closure" terminals. The Genelec DI18A Balancer is the ideal solution in large sound reinforcement, installation and recording applications.

Unbalanced to Balanced Conversion: The DI8A Active Balancer converts eight unbalanced RCA phono signal sources to balanced signals via XLR output connectors. The result eliminates associated noise and susceptibility to electronic interference on long cable runs.

Duplicated Outputs: One of the channels is equipped with duplicated outputs for connecting twin subwoofers in large sound reinforcement arrays.

Remote Muting: Remote muting capability is available with the "12V trigger" and "contact closure" terminals. The Genelec DI18A Balancer is the ideal solution in large sound reinforcement, installation and recording applications.

Input Impedance	10k ohms (minimum)
Output Impedance	100 ohms (minimum)
Frequency Response	+/- 0.5 dB 20Hz-60kHz +/- 1.5 dB 20Hz-120kHz
Input Connectors	Unbalanced RCA x8
Output Connector	Balanced XLR-male x9
Weight	8.8 lbs (4 kg)
Dimensions	1.69 x 16.65 x 8.03" (43 x 423 x 204mm)
