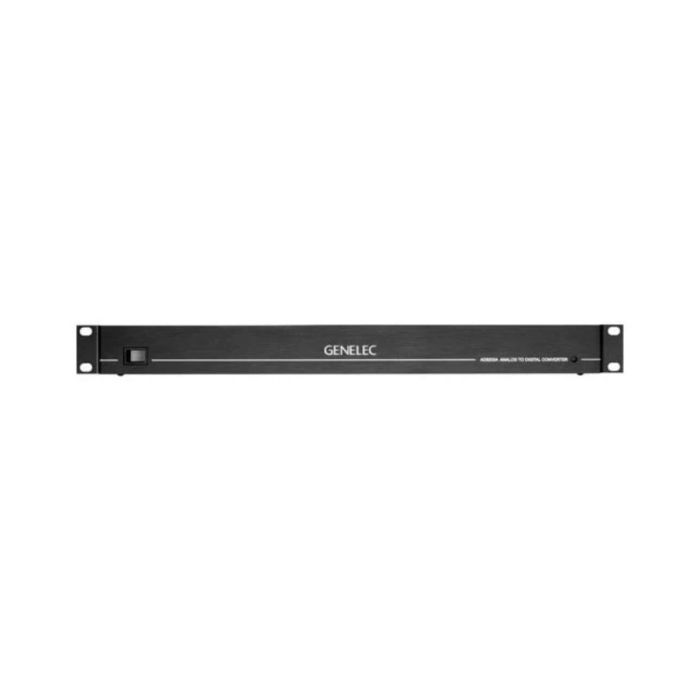

Genelec AD9200A AD Converter
Brand
GENELEC
The AD9200A 8-Channel Analog to Digital Converter from Genelec is a rackmount converter that translates an analog audio input signal into a digital output signal. This allows you to use the 7200 series DSP subwoofers with analog signal sources.
The AD9200A 8-Channel Analog to Digital Converter from Genelec is a rackmount converter that translates an analog audio input signal into a digital output signal. This allows you to use the 7200 series DSP subwoofers with analog signal sources.
The unit has a 25-pin DB25 connector that accepts up to 8 channels of analog audio. The connector is wired with a standard Tascam/ProTools pinout for wide compatibility. The converter has 4 XLR output connectors, each of which carries 2 channels of AES/EBU digital audio. The digital audio is in AES3 format with a 24-bit word length and a 192kHz sample rate to deliver professional-quality results, consistent with the audio from Genelec's 8200 series DSP products. The converter operates via an external 12VDC power supply.
- Converts an analog audio input signal into a digital output signal. This allows you to use the 7200 series DSP subwoofers with analog signal sources
- The 1RU chassis fits into any standard 19" equipment rack
- The 25-pin DB25 input connector accepts up to 8 channels of analog audio. The connector is wired with a standard Tascam/ProTools pinout for wide compatibility
- There are 4 XLR output connectors, each of which carries 2 channels of AES/EBU digital audio. The digital audio is in AES3 format with a 24-bit word length and a 192kHz sample rate to deliver professional-quality results, consistent with the audio from Genelec's 8200 series DSP products
- Operates via an external 12VDC power supply
| Frequency Response | 4Hz - 76kHz, -3dB Relative to 1kHz |
| Total Harmonic Distortion (THD) | 0.018%, +20dBu Input, 22Hz - 20kHz |
| Dynamic Range | 110dB, Linear |
| Digital Audio Format | AES/EBU (AES3), 24-bit/192kHz |
| Input Clipping Level | +21.5dBu |
| Connectors | 1 x 8-Channel Balanced DB25 Connector (Tascam/ProTools Pinout) 4 x XLR Outputs (2 Channels Each) |
| Power | Power Supply: FW74010/12, 12VDC Mains: 100-240VAC, 50/60Hz |
| Power Consumption | < 7W |
| Dimensions (HxWxD) | 1.7 x 19 x 4.1" (43 x 483 x 105mm) |
| Weight | 4.4 lbs (2kg) |
| Manufacturer | GENELEC |
|---|
